Cheap Price 6m3 8m3 10 m3 Hook Lift Skip Loader Swing Arm Garbage Truck
Dongfeng D9 4X2 8-10CBM Swing Arm Garbage Truck
Shacman Dongfeng Low Price New small-scale 8m3 10cbm 6m3 Swing Arm Garbage Truck 4X2 Skip Loader Waste Collection Vehicle
Right Hand Drive HOWO Dongfeng 8m3 10m3 5m3 6m3 Swing Arm Garbage Truck in Stock with Cheap Price
| Price 1-4 Pics | US $2988 |
| Price 5+ Pics | US $2850 |
| After-sales Service: | 7X24 Hous Online After Sales Service |
| Customization: | Available |
| Warranty: | 12 Months |
| Certification: | ISO9000, CCC |
| Emission Standard: | Euro 3, 4, 5, 6 |
| Payload: | 6 |
| Transmission Type: | Manual |
Swing Arm Garbage Truck
| Product Name | Swing Arm Garbage Truck | Type | Roll Off |
| Transmission Type | Manual | Certification | ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE |
Volume | 6001-10000L | Emission Standard | Euro 3,Euro 4,Euro 5 |
| Payload | 6t | Fuel | Diesel |
| Drive Wheel | 4×2 | Brand | HOWO,FAW,Foton,Dongfeng |
| Usage | Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type | ||
| Work Cycle Time | 60s | Material | Carbon Steel |
| Transport Package | Roro or Bulk | HS Code | 8704223000 |
Product Description
Swing Arm Garbage Truck

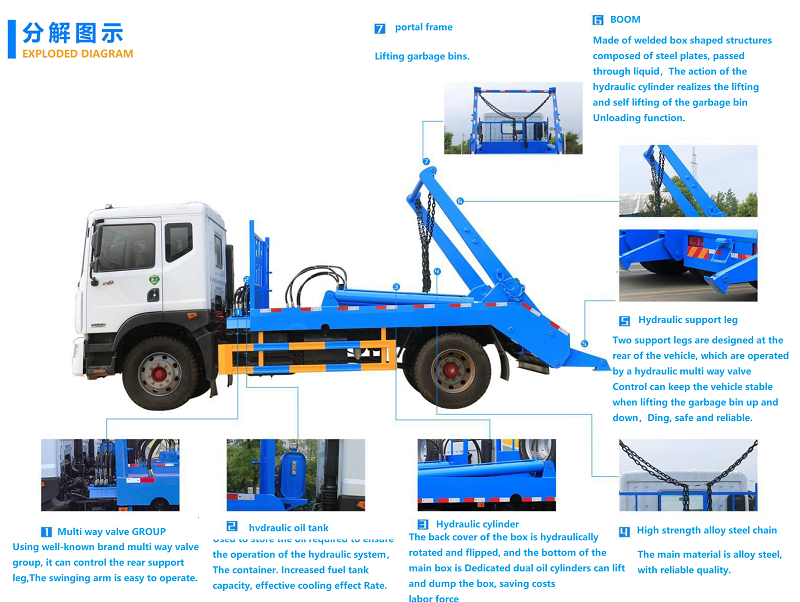

 | Upper assembly Support the operation of vehicle series. Adopting standardized assembly processes. |
| portal frame Lifting garbage bins. |  |
 | Hydraulic cylinder The back cover of the box is hydraulically rotated and flipped, and the bottom of the main box is equipped with dedicated dual oil cylinders, The box can be lifted and self unloaded, saving labor. |
| Multi way valve group Using well-known brand multi way valve group, it can control the work of the rear leg and swing arm Make it easy to operate. |  |
 | Hydraulic support leg Two support legs are designed at the rear of the vehicle, controlled by a hydraulic multi way valve, which can make Maintain stability, safety, and reliability when lifting garbage bins up and down on vehicles. |
| BOOM Made of welded box shaped structures composed of steel plates, driven by hydraulic cylinders Implement the lifting and self dumping functions of garbage bins. |  |
| Vehicle Model | JS5070ZBSE6 |
| Wheelbase (mm) | 3360 |
| Engine Power (kW) | 93/96/100/103 |
| Transmission | 5-speed high and low |
| Overall Dimensions [Length×Width×Height (mm)] | 5995,5980*2090,2000*2810,291 0,3010 |
| Curb Weight (kg) | 3770,4050 |
| Maximum Gross Vehicle Mass (kg) | 7360 |
| Matching Garbage Bin | 6 to 18 cubic meters |
| Hydraulic System Pressure (MP) | 6 |
| Operation Mode | Electric control/Manual/Electric - manual integrated |
| Operation Time for Loading and Unloading Garbage Bin | ≤60 s |
Product Introduction
The swing arm garbage truck adopts Dongfeng and other chassis with a unified hydraulic lifting assembly, and is transported by left and right arms
The national unified swing arm garbage hopper can accommodate multiple buckets per truck, with self dumping function, achieving safety, stability, and reliable performance. waste
The bucket body is divided into different forms of garbage bins configured according to swing arm type and pit ground dual-use type. Can be equipped with a sealing cover to prevent
To prevent leakage and pollution, in order to meet the requirements of different environments, we adopt leading domestic technology and mili tary enterprise accessories,
Reliable quality.
Product Features
The swing arm garbage truck is suitable for the national general garbage hopper, with self dumping function, hydraulic operation, and the garbage hopper can be self lifted
Hanging up and down, swinging the arm for one working cycle time: 60 seconds. The characteristic of this car is that the cargo hopper is separated from the body, which can achieve one
The joint operation of the trolley and multiple cargo hoppers for circular transportation greatly improves the transportation capacity of the vehicle, making it particularly suitable for
Short distance transportation, such as the cleaning and transportation of urban garbage by the environmental sanitation department.
This vehicle can lift the garbage in the underground garbage bin and the garbage bin together onto the vehicle for transportation, and can also self dump, reducing
The labor intensity of workers. The collection and transportation method of this garbage truck is currently widely used in the world,
It can achieve multiple boxes in the car, greatly reducing equipment costs and individual compartments, etc; The functions of its dedicated devices are all derived from automobiles
Motivation is the driving force, achieved manually or electronically through hydraulic mechanisms. The body of the vehicle is welded with high-quality carbon steel plates
It has the advantages of high strength, light weight, and no secondary pollution.
precautions
1. The operator must undergo strict after-sales service training and must hold a driver's license before driving.
2. Before operating the vehicle, first check whether the various operation switches of the vehicle are in the closed position or initial position
Location, confirm that the vehicle's operation will not cause any harm.
3. The operation and handling of vehicles must be carried out under safe and suitable working conditions
The protective devices and safety measures must be in place.
During work, operators are never allowed to leave the operating system.
When a vehicle malfunctions, it must be repaired by professional personnel to eliminate the problem. And strictly abide by it
Safety operating procedures. During the warranty period, the after-sales service personnel should be notified first. Caused by improper operation
The after-sales service personnel are not responsible for any obstacles.
When maintaining or repairing a vehicle, it must be in the engine off and braking state.
7. Safety precautions must be taken during maintenance.
After Sales Service
Answer and solve your questions and consult within 24 hours
Overseas job site service available
One year guarantee about three key parts(axle, engine, transmission).Other spare parts could be supplied by cost price.
Other services:
1.All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
Packaging & Shipping
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
FAQ
Q1. Is your company a factory or a trading company?
A: We are a leading manufacturer of special trucks, tank trucks, trailers, and spare parts in China. Welcome to visit our special vehicle production base in Suizhou City, China.
Q2. What are your payment terms?
A: T/T 30-50% as deposit, the rest to be paid before delivery. We will show you photos of the products and packages before you pay the balance.
Q3. What are your delivery terms?
A: EXW, FOB, CFR, CIF, DAF, DDU.
Q4. How about your delivery time?
A: Generally, it takes 20 to 30 days after receiving the advance payment. The specific delivery time depends on the items and quantity of the order.
Q5. Can you customize the products to meet my requirements?
A: Yes. We have a professional R&D team, and we can produce products exactly as you require.
Q6. What is the price of your products?
A: We are factory direct sales, so the price is very competitive. Different products have different prices. The price
also depends on your special needs. To know the exact price, please contact us!
Q7. Do you test all the goods before delivery?
A: Yes, we do 100% testing before delivery.
Q8. What service can I get from you?
A: We provide lifetime tracking service and a one-year free warranty for all our products.
