Shacman X3000 Sinotruk 6x4 6x6 tractor trailer mounted Sany parfiger 25-35 ton articulated boom crane
Factory cast Euro 3 4X2 7 ton articulated crane with wooden clamps
SHACMAN M3000 Traction Head Truck mounted Sany Parfiger 25 ton Folding Arm Crane
Semi trailer mounted crane with 35 Ton Foldable Crane for Sale
| Price 1-4 Pics | US $102988 |
| Price 5+ Pics | US $102850 |
| After-sales Service: | 7X24 Hous Online After Sales Service |
| Customization: | Available |
| Warranty: | 12 Months |
| Certification: | ISO9000, CCC |
| Emission Standard: | Euro 3, 4, 5, 6 |
| Payload: | 3 |
| Transmission Type: | Manual |
Truck with crane,truck mounted crane,Folding Crane Truck,truck with crane ,truck with crane,crane with truck,crane truck with flatbed,crane truck with 12 tons,crane truck with 15 tons
truck with crane arm,crane truck with flatbed sinotruck,truck with crane 10t,crane truck with flat bed,Heavy-Duty Cranes,Grab Cranes,folding arm crane,crane with folding and telescopic arm
folding arm crane truck,folding arm drone,desk arm extender,foldable arm rest,telescopic boom arm,folding arm,boom lift arm,drone folding arm,mini truck crane 3 tons boom truck crane Small onboard manipulator made in china
SHACMAN X3000 Tractor Head and Semi-trailer Crane Palfiger 25 TonS SPK50002D Folding Arm Crane for Sale,Parfiger 25 Ton Folding Arm Crane,SHACMAN X3000 Traction Head Truck Mounted
SHACMAN X3000 Traction Head Truck mounted San y Parfiger 25 ton Folding Arm Crane
25 ton towing head truck crane! Weichai 460 horsepower! Fast 12 speed gearbox! Three story through beam! 7.5 ton front axle, 16 ton rear axle! 1200 steel wire tire!
Semi-trailer Crane Parfiger 25 ton six section folding arm crane! Arm length 14.3 meters
The semi-trailer is separately equipped with an engine and gearbox. Even when the tractor head is driven away, the crane can still work. All processes are completed and we are waiting for the customer to pick up the vehicle!

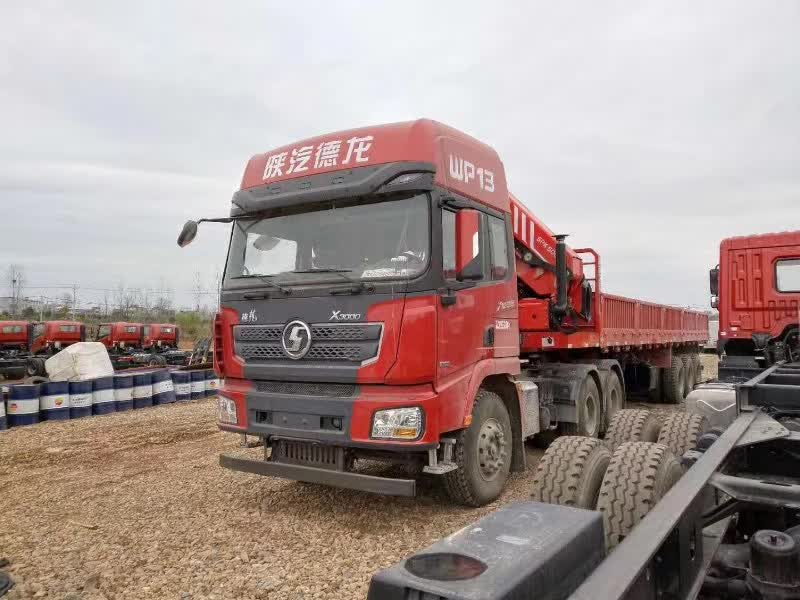

Chassis configuration: SHACMAN New X3000 460 horsepower 6 * 4 enhanced version, extended half height cab (H) without air deflector, four point airbag suspension in the cab, air main seat, manual flip, road bumper, sunshade, electric air conditioning, electric window machine, central locking system, domestic steering gear, domestic clutch, transmission power take-off, 165Ah maintenance free battery, domestic four channel ABS, Tianxing Jianzhiya version BD car terminal, reserved remote throttle wire harness interface at the battery box (controller is optional, optional rocker arm or knob type), ignition and shutdown function under the car, engine speed not less than 800r/min after power take-off switch is turned on, front and lower protection, ordinary 90 saddle seat. The, QH50 power take-off, WP12.460E50 engine, 12JSD200TA transmission, axle ratio MAN16T dual axle 4.266, frame 866 * 300 (8+7+8), wheelbase 3975+1400, rear suspension 1075, front axle 7.5T, 400L aluminum, 12.00R20, color selectable.

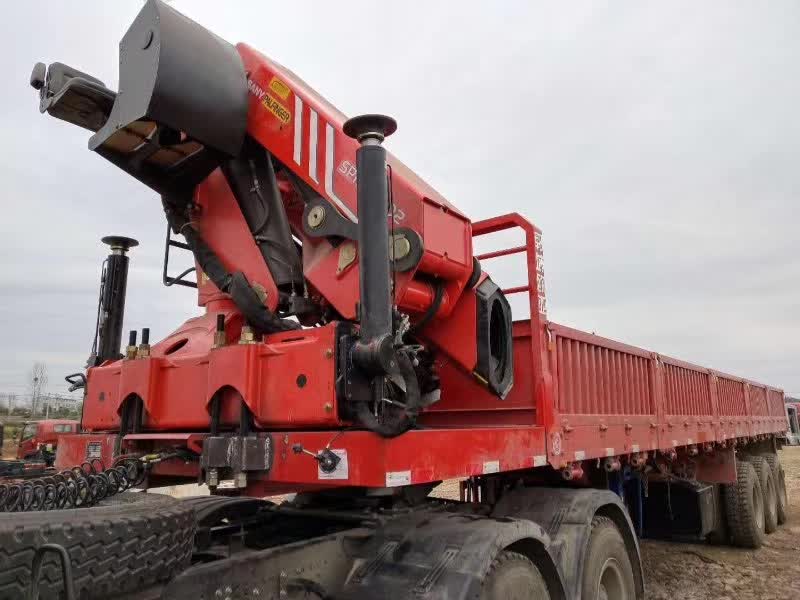

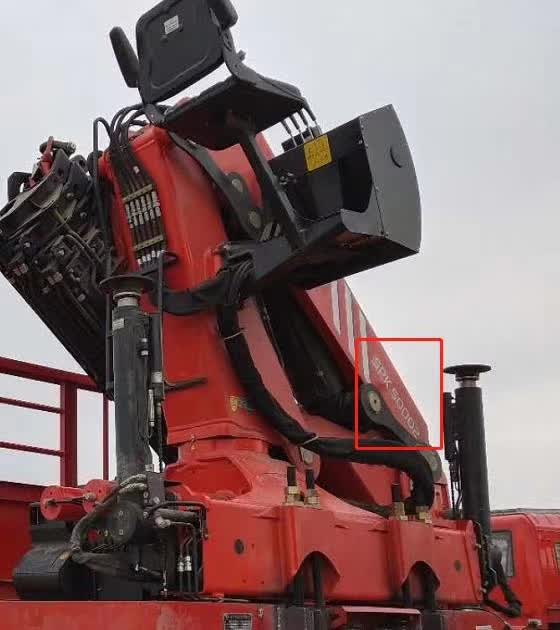

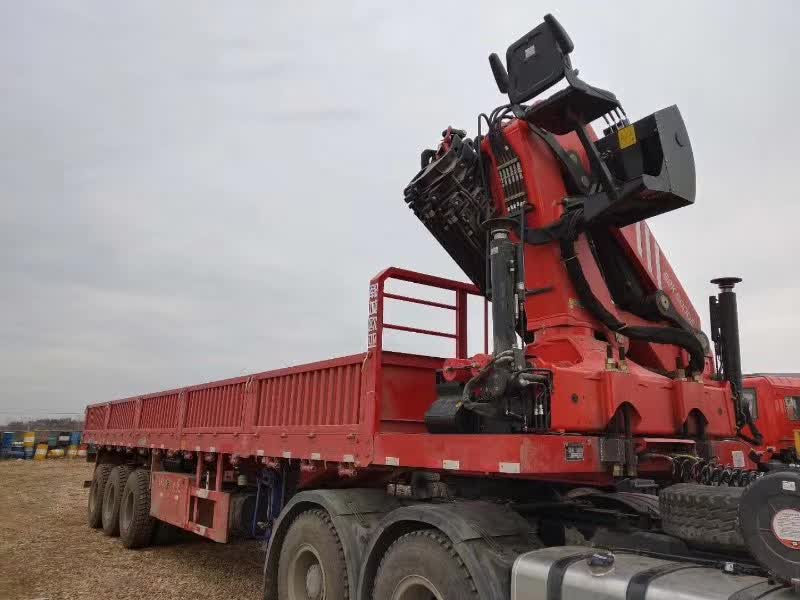

Install the San y Parfiger SPK5002D folding arm crane, with a working radius of 14.3 meters and a lifting height of 18.2 meters. The maximum horizontal lifting capacity of the entire arm is 2.73 tons.
The semi-trailer is separately equipped with an engine and gearbox. Even when the tractor head is driven away, the crane can still work. All processes are completed and we are waiting for the customer to pick up the vehicle!
| Application: | widely used | UNIQUE SELLING POINT | Short turning radius |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Product Name: | Truck Mounted Crane | Application: | Widely Used |
| Crane type: | Truck Crane Mobile Crane Hydraulic Crane | Capacity: | 2-130 Ton Crane |
| Chassis Brand: | Howo.DongFeng.FAW.Foton.JAc.shacman.ISUZU | Driving Type: | 4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice |
| 0utrigger: | 4 Hydraulic Outriggers | Tire: | 11.00R20/12.00R20 |
| Color: | Customer Requirements | HS Code | 8704223000 |
Product Details Images
| SHACMAN M3000 Traction Head Truck mounted San y Parfiger 25 ton Folding Arm Crane | |||
| Chassis Model | 6X4 | Color | Optional |
| Engine | Manufacturer | WEICHAI | |
| Horse power | 460HP | ||
| Wheel Base(mm) | 3975+1400 | Driving type | 6*4 6*6 |
| Type & Size of Tyre | 12.00R20 | Number of tyre | |
| Technical parameter of crane | |||
| Crane model | SPK5002D | Working Radius(m) | 14.3 |
| Max. lifting weight(KG) | 25000 | Max. working height (m) | 18.2 |
| Max oil plow of hydroulic systm(L/MIN) | 25 | Rated pressure of hydroulic system(mpa) | 28 |
| Oil tank capacity (L) | 300 | Installation space(mm) | 1200 |
| Rotation angel | 360° | ||
Product Paramenters
Vehicle Technical Parameters | |
Product Name | Truck Muonted Crane |
Curb Weight(Kg) | 18000 |
Suitable Crane(kg) | 0-25000 |
Lifting Height(m) | 10 |
Rotator | 360° |
Max Person Allowed | 3 |
Overall Dimensions(mm) | 12500x2550x3980 |
Container Size(mm) | 10000x2450x600 |
Working Radius(m) | 14.3 |
Operating Mode | Manual/Remote Control |
Chassis Technical Parameters | |
Brand Name | SHACMAN X3000 |
Fuel Type | Diesel Oil |
Front/Rear Axle(t) | 5.5/13 |
Number of Axles | 3 |
Number of Tires | 10 |
Brakes | Air Brake |
Engine Power(KW) | 340 |
Transmission | 12-speed high and low |
Wheelbase (mm) | 3975+1400 |
Tire Size | 12.00R20 |
Company Profile
We is located in Suizhou City, Hubei Province.the capital ofspecial purpose vehicles in China. Founded in September 2015, the com-pany has the qualification ofspecial purpose vehicle production and sales, and waslisted in Wuhan Equity Custody Trading Center, which was supported by special fundsfrom Suizhou Municipal Government. We are a large-scale special vehicle manufacturerdesignated by China governmentand enterprises. The company's independent innovation products have won morethan 100 national patents.The company has passed lS09001-2008,CCCGJB9001B-2009,ASME,ADR and other certifications.
Our factory covers an area ofmore than one million square meters. The company has more than 8,000 employees, including more than 500 engineers and morethan 2,000 skilled workers. lt has more than 2,000 sets oflarge-scale productionequipment and more than 200 sets oftestingequipment. The annual productioncapacityis over 100,000 sets.
Certifications
Packing and Delivery
We have already exported our products to more than 100 countries and regions, including: Africa,
The Middle East,SouthAmerica,Central Asia, Southeast Asia,Russia, Mexico, Australia, Mongolia and so on.
To better ensure the safety of yourgoods,professional, environmentally friendly, convenient and efficient packaging services will be provided.
PRODUCT SHIPPING
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks.
FAQ
ARE YOU THE FACTORY?
We are factory in Suizhou for 20 Years. We manufacture a vaitery of trucks,such as:Tank Trucks,Aerial Work Truck,Crane Truck,Garbage Truck,TMA Truck,Wrecker Tow Truck,Fire Fighting Truck, Ambulance, Refrigerator Trucks, Transport Trucks,Semi Trailers etc. Welcome to visit our factory.
WHICH COUNTRIES DO YOU EXPORT TO?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, Azərbaycan,Mongolia, Pakistan,etc.
Middle East: Saudi Arabia, UAE,Jordan, Oman, Yemen,Syria, Qatar, etc.
Europe: Russia, Ukraine, Belarus, Bulgaria, etc.
Oceania: Papua New Guinea, Australia, etc.
WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/C term, VISA,Paypal.
(1) On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client. (2) On L/C term, a 100% irrevocable /C without "soit clauses" from an interational recognized bank can be accepted. Please seekthe advice from the individual sales manager whom you work with.
WHICH INCOTERMS 2010 TERMS CAN YOU WORK?
We are a professional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work onregular temms such as FOB.CFR,CIF,CIP, DAP
WHAT IS YOUR TERMS OF SHIPMENT?
Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped by containers
COULD YOU CUSTOMIZED EXACTLY ACCORDING TO MY REQUIREMENT?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
We provide lifelong trucking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
For other questiones,we will reply you ASAP after receiving your consult!
