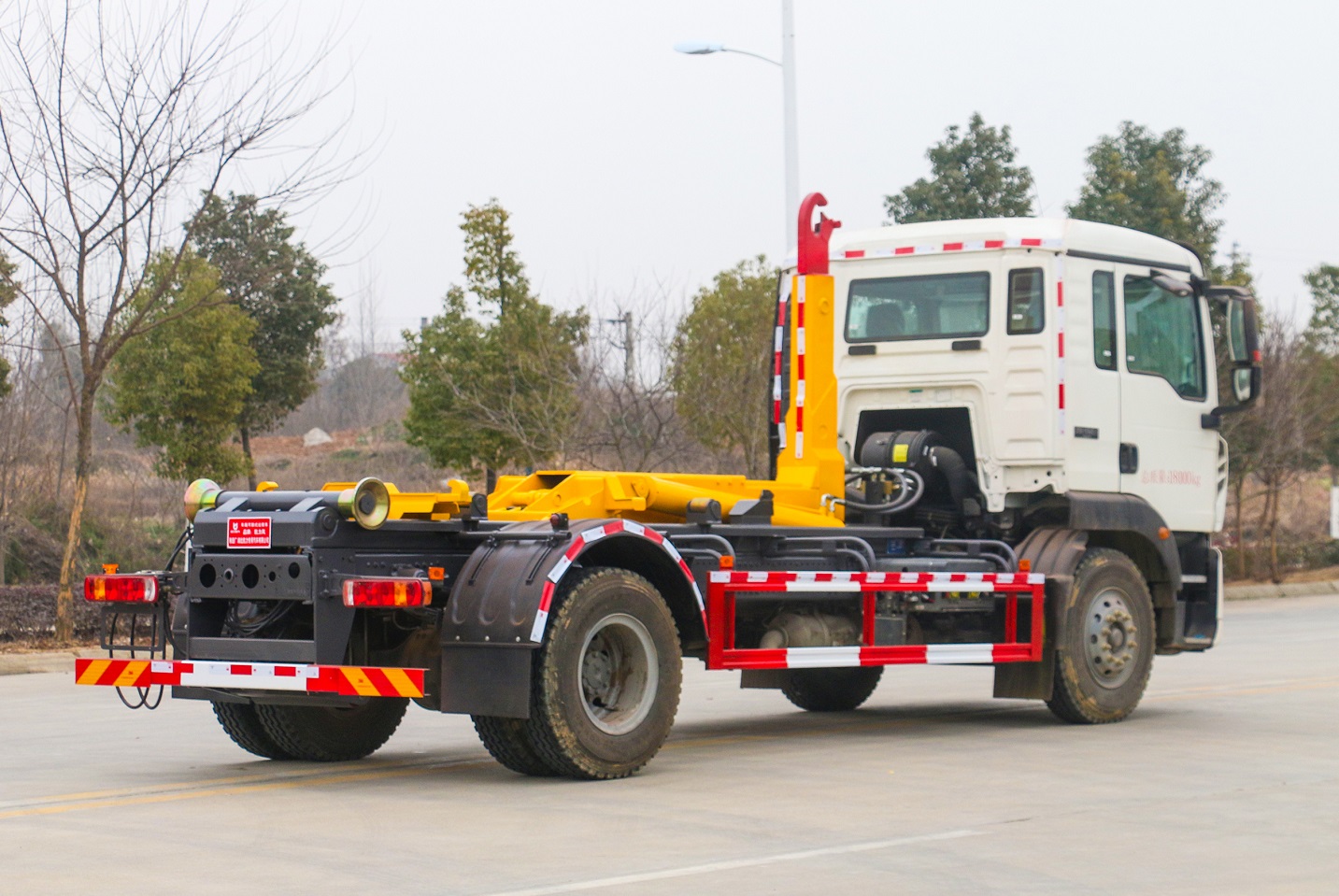

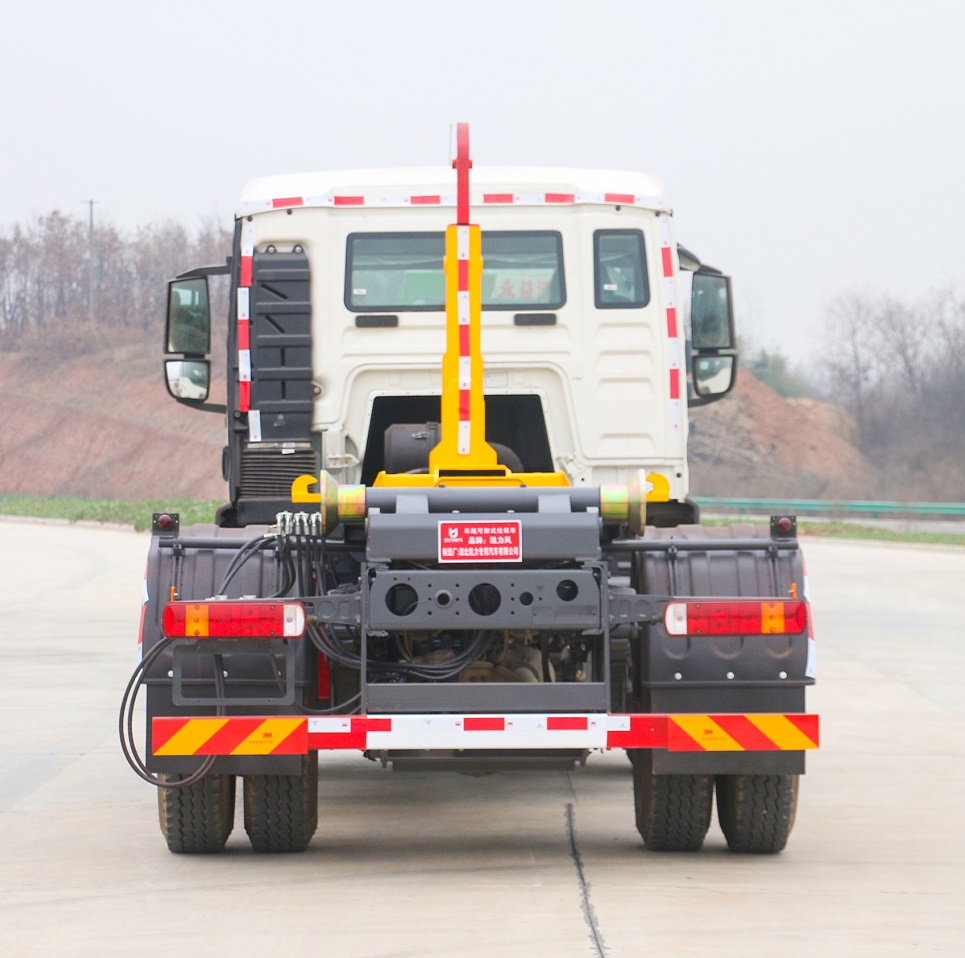

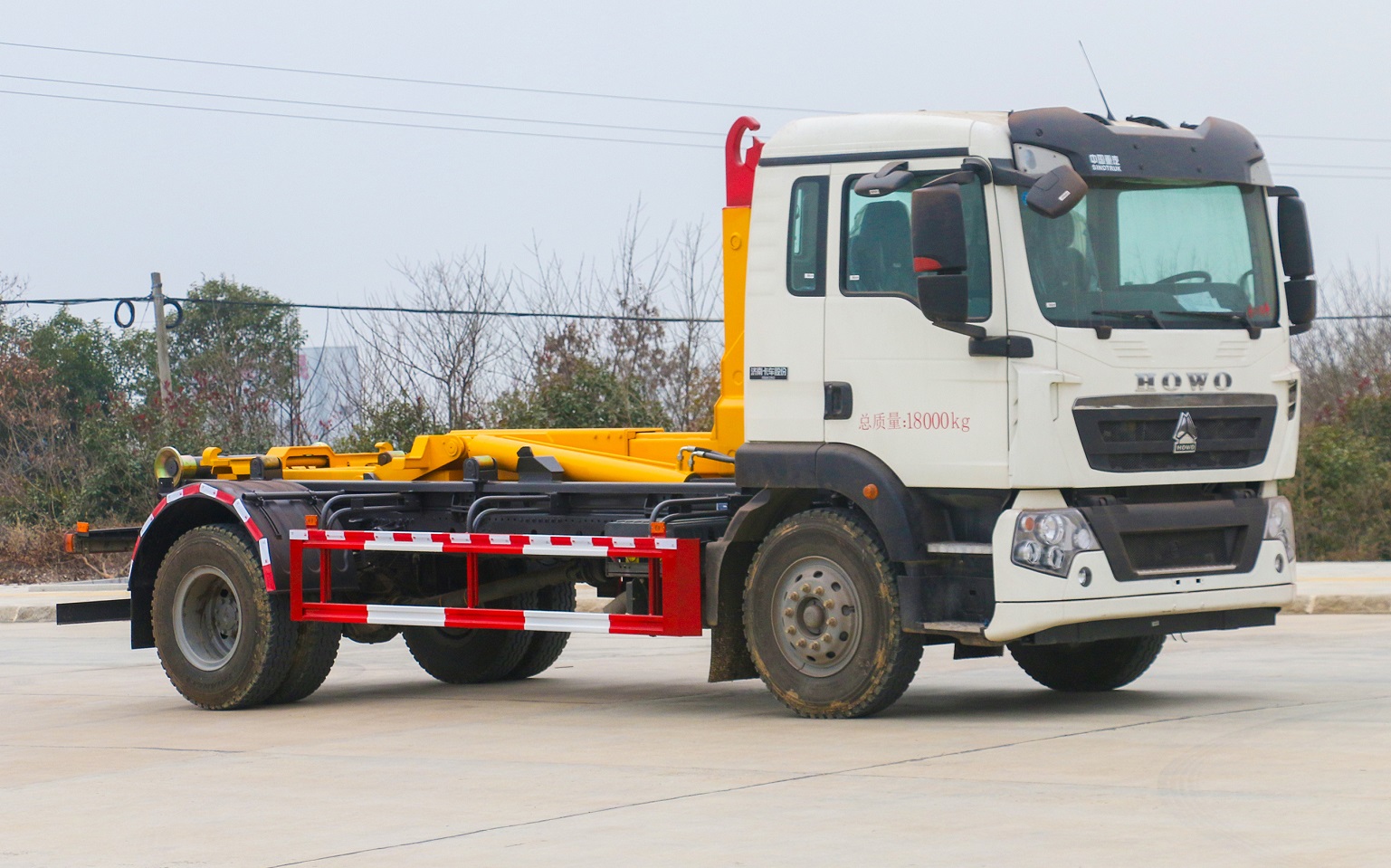

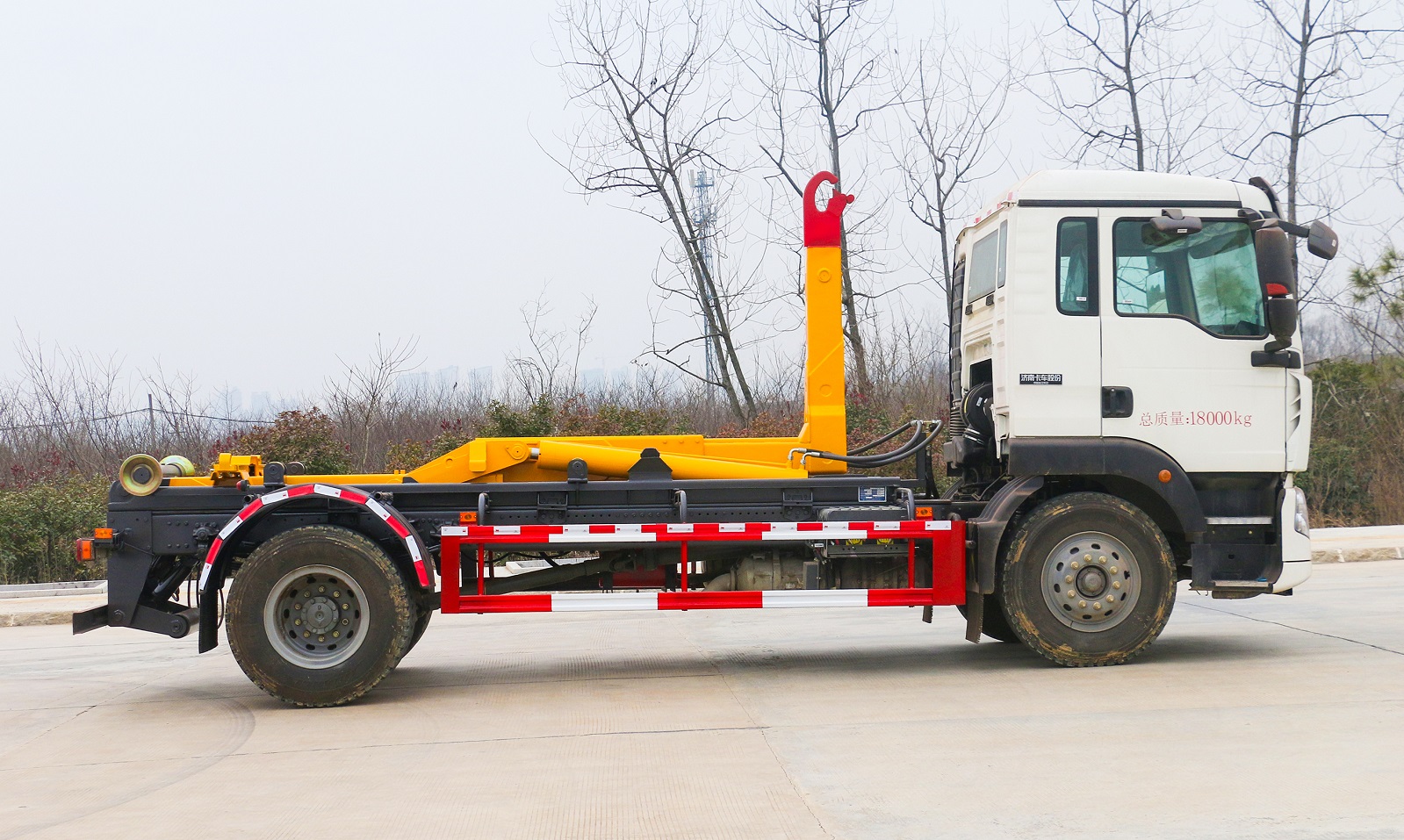

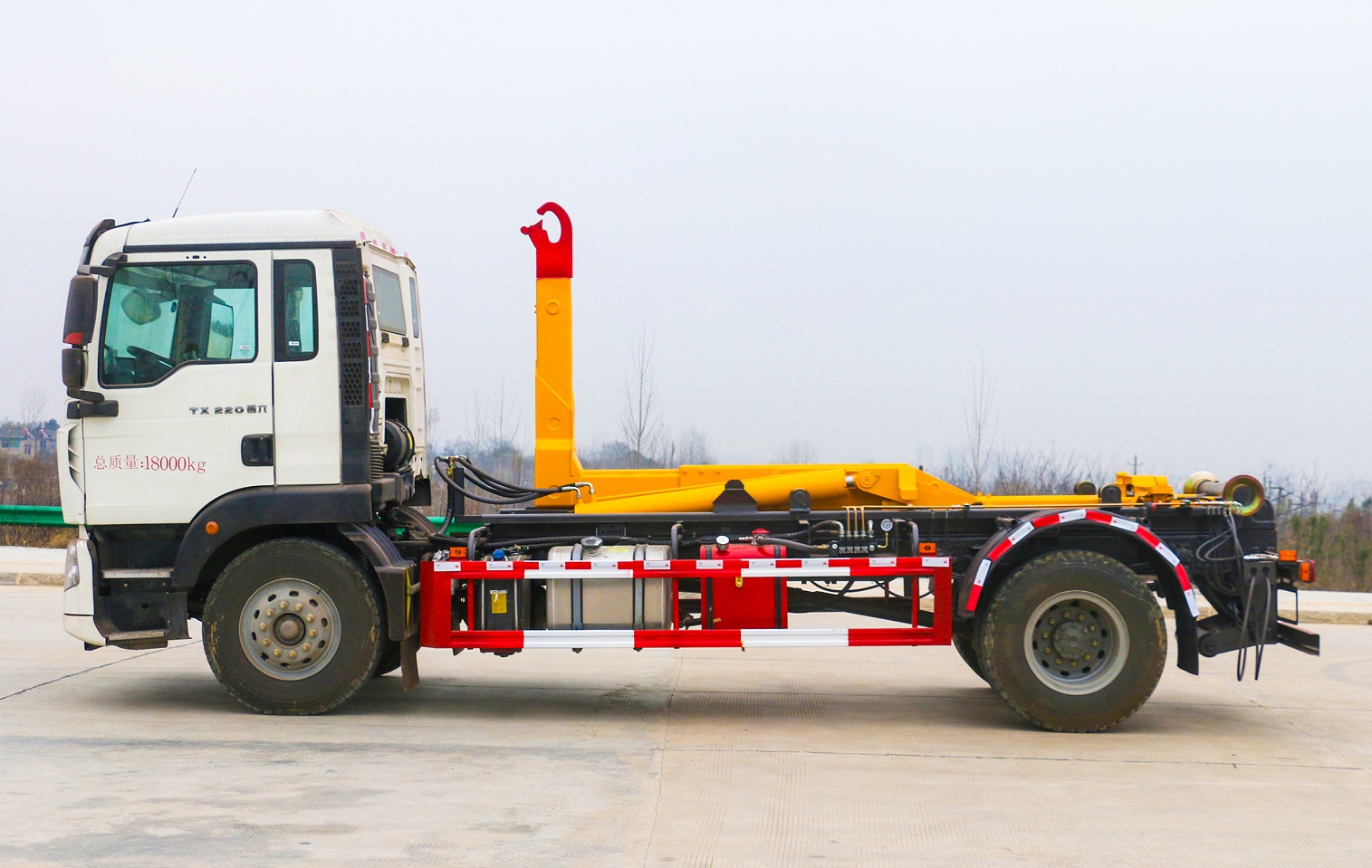

Sinotruk HOWO Refuse Dump Bin 12m3 Hook Lift HOWO Dump Bin Garbage Truck with Crane

Hook lifter Garbage Truck,Truck detachable garbage truck, also known as hook arm garbage truck or sleeve arm garbage truck. This car is widely used in urban areas Municipal street school garbage disposal, stable and reliable vehicle performance, safe and labor-saving hook loading and unloading operations in garbage bins, self dumping Garbage is lightweight and fast, and the vehicle is equipped with a well sealed compartment, which can avoid secondary pollution and fully meet urban environmental protection requirements.

The detachable garbage truck adopts a fully enclosed garbage bin and can be lifted and unloaded from the chassis. Having a simple structure Single, easy to operate and flexible, safe and reliable, with a high degree of mechanization, which makes it have a high level of work Efficiency, while also preventing misoperation, avoiding accidents, and saving manpower, reducing the workload of staff Dynamic intensity. Due to its special structural form and working mode, it can effectively handle loading and transportation processes Avoiding secondary pollution and noise pollution is extremely beneficial for protecting the environment, and is a new type of garbage collection and transportation Transport the Truck.

Sinotruk HOWO Refuse Dump Bin 12m3 Hook Lift HOWO Dump Bin Garbage Truck with Crane

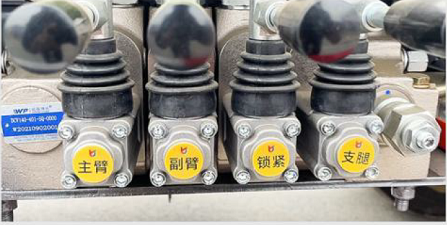

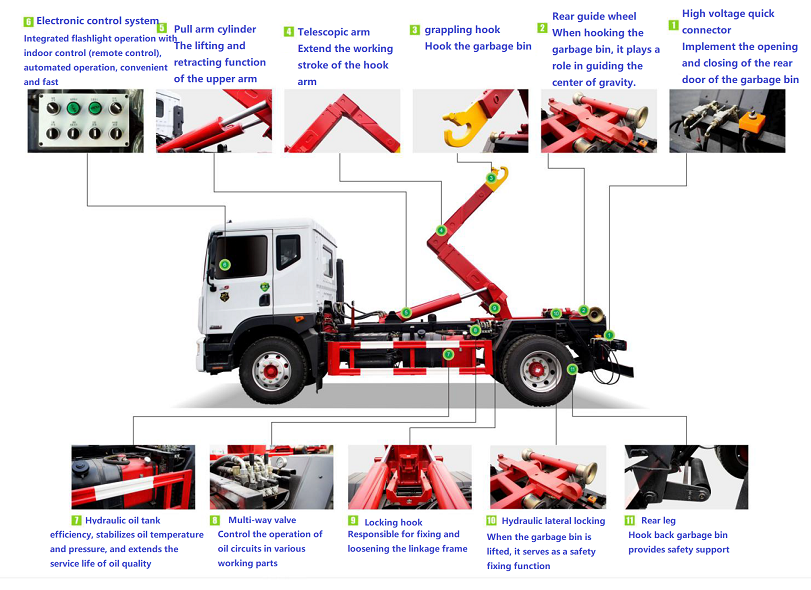

	Multi way directional valve Using branded valve groups to control the overall operation of the hydraulic system part.

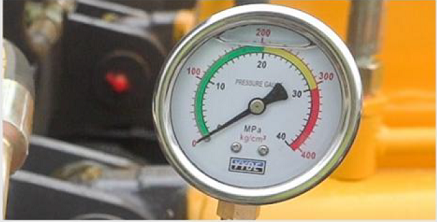

Pressure vacuum gauge Featuring a simple structure, high cost-effectiveness, intuitive indication, and reliable performance, etc characteristic.

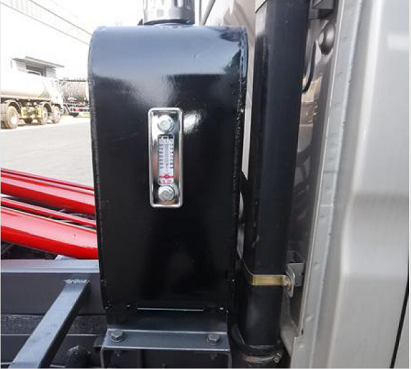

	hydraulic oil tank A container used to store the oil required to ensure the operation of a hydraulic system. Increased fuel tank capacity for effective cooling efficiency.

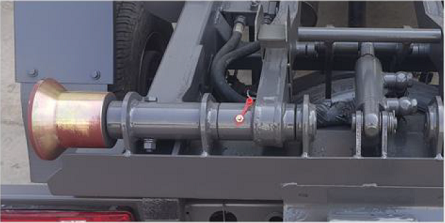

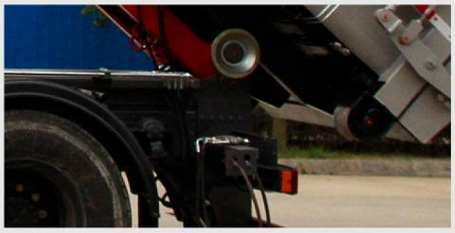

Rear guide wheel Each side of the rear is equipped with a pulley, and the rotating parts are lubricated with butter The garbage bin provides excellent assistance during lifting and lowering.

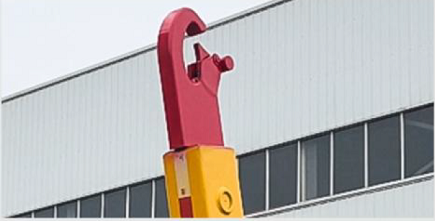

	grappling hook Plays the role of hooking the garbage bin.

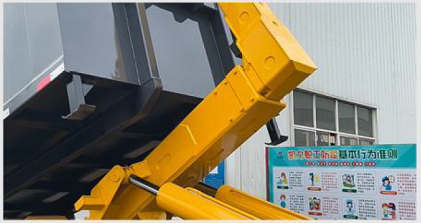

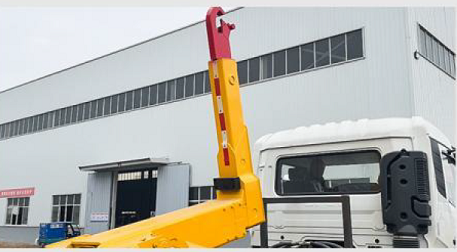

Telescopic arm Extend the working stroke of the hook arm.

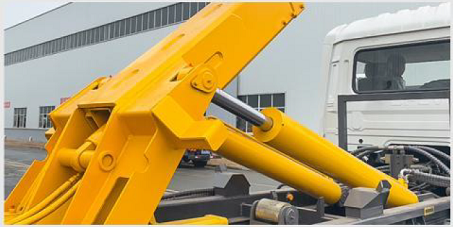

	Pull arm cylinder The lifting and retracting function of the upper arm.

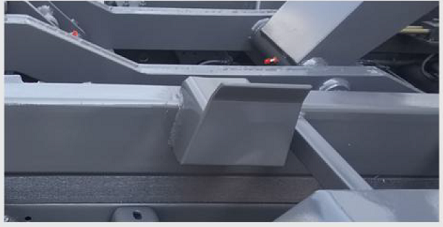

Hydraulic lateral locking  When the garbage bin is lifted, it serves as a safety fixing function.
	Rear leg The hook back garbage bin serves as a safety support.
Hydraulic lateral locking When the garbage bin is lifted, it serves as a safety fixing function.
	Activity arm kit When the telescopic oil cylinder extends, the telescopic arm moves forward When the oil cylinder is retracted, the telescopic arm moves backwards.
External mobile garbage bin oil pipe  Equipped with a wheelbase of 3950 or more, it can be connected to the oil system of a mobile garbage station.

Sinotruk HOWO Refuse Dump Bin 12m3 Hook Lift HOWO Dump Bin Garbage Truck with Crane

Company Profile

High end and atmospheric appearance
The detachable garbage truck is matched with a mobile horizontal garbage bin, which is equipped with four casters at the bottom
And the locking device is equipped with a lifting ring at the front, which can be lifted or unloaded from the vehicle, and can also be matched with a mobile compressed garbage station
use.
The arm hook is installed on the chassis of a car and is used for lifting, unloading, or dumping garbage. It is mainly composed of hooks
Composed of arms, hook arm frames, auxiliary beams, and hydraulic cylinders. The auxiliary beam is mainly used to fix and support the garbage bin with the chassis,
And serve as an installation connection bracket for other parts. Pull arm and hook arm frames are mainly used for lifting, unloading garbage bins, and dumping
Garbage and hydraulic cylinders are the driving components for various actions.
Good sealing performance
The detachable garbage truck in the carriage adopts a fully enclosed garbage bin, which can effectively handle the loading and transportation process
Avoiding secondary pollution and noise pollution is extremely beneficial for protecting the environment, and is a new type of garbage collection and transportation
Car.
Easy to use and simple to operate
The top cover system can be opened and retracted normally in a short period of time, and the loading and unloading process of goods is not affected
One driver can complete all the operational procedures of the vehicle. This vehicle can dispose of garbage in underground garbage bins and garbage bins
They can be pulled together onto the vehicle for transportation and self dumping, reducing the labor intensity of workers. What is the collection and transportation method of this garbage truck
The widely used garbage collection and transportation method in the world can achieve multiple boxes per vehicle, greatly reducing equipment costs
And space and so on.
Multiple options, customized according to needs
According to user needs, the detachable sealing cover of the sanitation garbage truck compartment is designed as a double-sided flip, folding cover, and front sliding cover
Cover, fully sealed side opening small door, and all garbage truck rear covers can be designed for manual or hydraulic closure.

precautions

1. Before loading garbage, the arm mounted garbage truck can only be mounted and removed when it reaches 6 standard air pressures during unloaded operation
Power device (located at the bottom left of the steering wheel in the driver's cab), check for any leaks or abnormalities in each component, and then follow the operating instructions
Operate by indicating the position on the signboard. In general, do not adjust the pressure of the pressure regulating valve. Vehicles are shipped before leaving the factory
Already adjusted.
2. The weight of garbage in the garbage compartment should not exceed the range allowed by the vehicle, otherwise it will cause damage during the packing process
Excessive pressure can cause damage to hydraulic components, resulting in oil leakage and slipping of clutch leather wheels in mild cases, and clutch slipping in severe cases
The weapon burned to death.
Before loading the detachable garbage truck, it is necessary to ensure that the longitudinal beam of the truck body is located at the rear of the auxiliary beam
Between the wheels, ensure that the longitudinal center axis of the vehicle coincides with the longitudinal center axis of the trunk. Otherwise, the vehicle should be adjusted
Location.
4. The detachable garbage truck in the carriage can be adjusted according to the weight of the garbage collected in the carriage when loading the garbage bin
When increasing the throttle, the garbage bin can be smoothly lifted up to achieve packing.
5. At the end of the homework, the electromagnetic clutch switch should be turned off in a timely manner to ensure that the electromagnetic clutch is in a power-off state
It is particularly important to note that when the car is turned off, the electromagnetic clutch should be in a power-off state, otherwise
It will cause a large amount of battery power consumption, resulting in power loss and preventing the vehicle from starting normally.
