Consultation Hotline 13872856768
| Price 1-4 Pics | US $5,000.00 |
| Price 5+ Pics | US $48,00 |
| After-sales Service: | 7X24 Hous Online After Sales Service |
| Customization: | Available |
| Warranty: | 12 Months |
| Certification: | ISO9000, CCC |
| Emission Standard: | Euro 3, 4, 5, 6 |
| Payload: | 0 |
| Transmission Type: | Manual |
Refrigerated Truck supplier, Refrigerated Truck,Chinese manufacturer,Chinese manufacturers
| Model NO. | 1Foton brand refrigerated truck | Certification | EEC |
| Payload | 20T | Emission Standard | Euro 3，Euro 4,Euro 5 |
| Transmission Type | Manual | Horsepower | ＜150hp |
| Fuel | Gasoline | Bearing Capacity | Medium |
| Car Type | The Semi-Trailer | Condition | New |
| Annual Output | 20000 Units | Tire Size | 175r14lt 8pr |
| Vehicle Wheelbase | 3360mm | Refrigeration Capacity | -5-15 Degrees |
| Color | According to Customer Requirements | Total Mass | 3495 |
| Number of Tires | 6 | Maximum Speed | 100-110 |
| Number of Axes | 2 | Fuel Consumption | 8.7 |
| Number of Steel Plate Springs | 3/5 | Transmission | 5-Speed Transmission |
| Transport Package | Maritime Logistics | Specification | 5070*1765*2490 |
| Trademark | Hubei | Origin | Made in China |
| HS Code | 870422 | Production Capacity | 5000 to 20000 Units Per Year |
Product Description
Refrigerated carriage body technology
New technology: "Bridge insulation technology and overall structural framework"; Fully sealed box board structure, the overall box board is a sandwich structure, with no welding process throughout the box closing process. The overall box board is bonded with reinforced resin adhesive and fixed with reinforced screws, and the inner and outer fabrics are new matte thickened 3mm fiberglass; Side panel+top plate: The keel bridge is made of pine composite board; Wooden insulation structure; Sandwich is made of high-density polyurethane insulation material; Fully sealed dual combination polyurethane high; The thickness of the compartment is 8cm (meeting the national A-level standard); Galvanized corner coating; The latest widened and thickened aluminum alloy edging profile; The local thickness of the profile is 6mm (reinforced with stainless steel rivets); The interior of the compartment adopts large rectangular LED lighting and enlarged compartment width indicator lights; The rear door frame is made of 304/3mm thick stainless steel material; The door frame sealing strip is made of EPDM rubber material; Thickened 304 stainless steel hinges and locks; The auxiliary beam is made of Q710 automotive beam steel; 15mm thick beam pad skin; Install anti-collision rubber blocks; 3M reflective adhesive board; Other standard configurations, the insulation effect of the box meets the national A-level standard.
By using a large positive and negative pressure plate equipment, pressure is applied, heated, and vacuumed to form a sheet metal in one go. The polymer composite material box is made of high-strength adhesive and overlapped, making it a truly fully sealed polyurethane non-metallic insulation box.
Our company's refrigerated car body is manufactured using a hydraulic adsorption integrated molding production line, with insulation performance meeting the national A-level standard and fully enclosed polyurethane plate bonding method;
Box panel material: The inner and outer wall panels are made of high-quality 2.2mm fiberglass (non absorbent, good insulation, strong hardness, and antioxidant) from China; The intermediate insulation layer is XPS extruded polystyrene board or PUR polyurethane board;
Accessories: Aluminum alloy edging around the cabin, stainless steel corners, stainless steel door locks, stainless steel door frames and hinges, energy-saving LED lighting inside the cabin;
The standard thickness of the cabin is 80mm, and 60mm or 100mm thickness can also be optional. The inner and outer wall panels can be equipped with fiberglass, stainless steel, color steel plate, or aluminum alloy.
refrigerated trucks can also be equipped with side door opening, guide rail meat hook, real-time temperature monitoring recorder, bottom plate ventilation groove, shelves, backup power system (external power supply can be connected) according to customer needs. According to customer requirements, it is modified into medical refrigerated trucks, meat hook refrigerated trucks, refrigerated preservation trucks, and refrigerated trucks suitable for transporting drugs, vegetables, fruits, fresh meat, frozen meat, seafood, and other purposes.

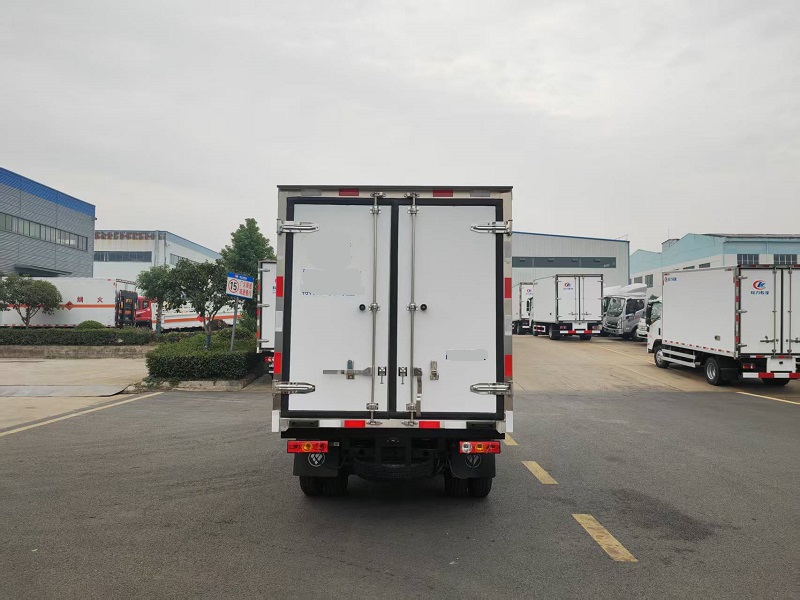

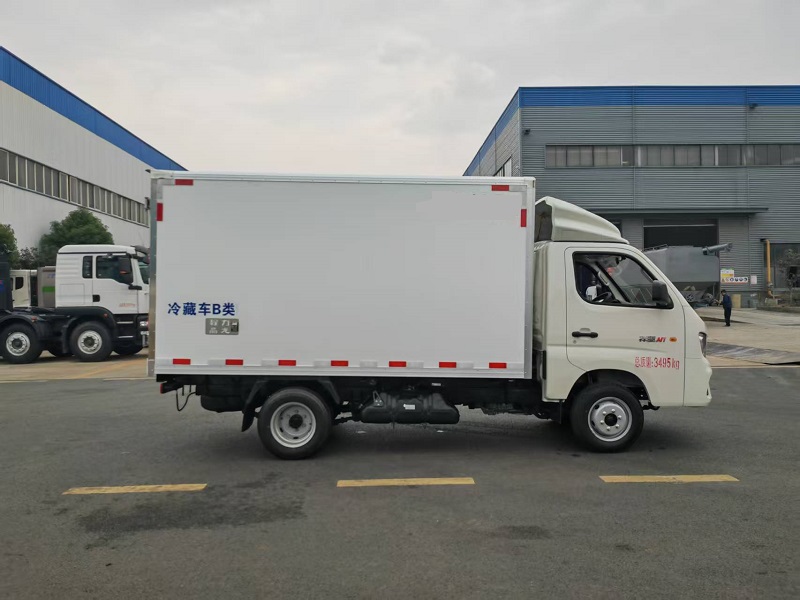

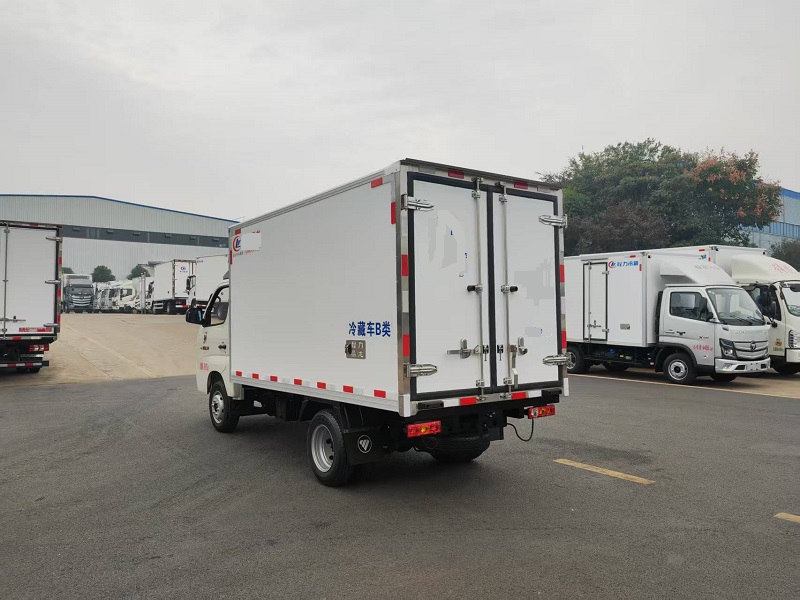

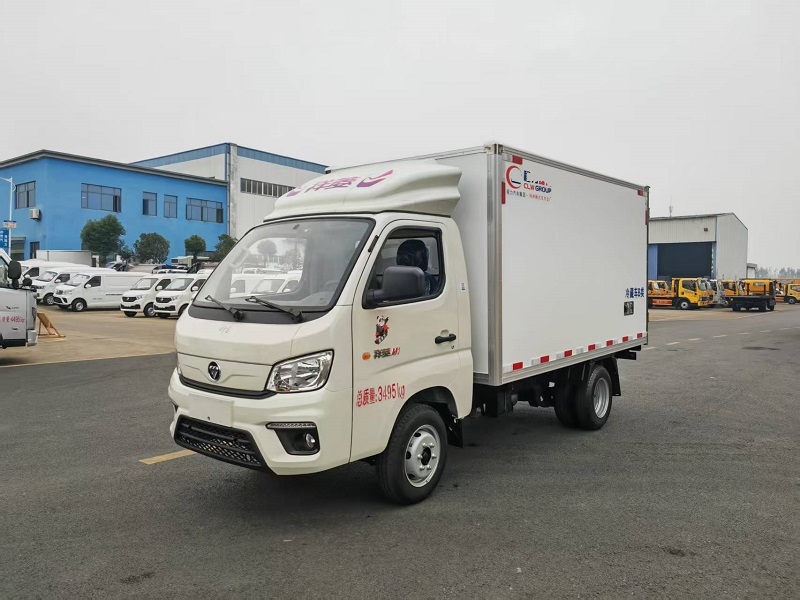

| Name | Futian Xiangling small refrigerated truck |
| Dimension(LxWxH) | 5070*1765*2490(mm) |
| Total Mass | 3495 |
| Rated Payload | 1615kg |
| Curb Weight | 1750KG |
| Passenger | 3 |
| The Parameters of Chassis | |
| Manufacturer/Model | China Futian |
| Driving Type | 4*2 |
| Wheel Base | 2750mm |
| Gearbox | 5 speed forward and 1 reverse |
| Tire | 175R14LT 8PR |
| The Number of Tire | 6+1(spare tire) |
| The Parameters of Engine | |
| Manufacturer/Model | YN4102QBZL |
| Rated Power | 116hp/85kw |
| Fuel Type | Diesel |
| Displacement/Capacity | 1600ml |
| Emission Standards | Euro 2 |
| The Parameters of Equipment | |
| Color option | Customizable |
| Function | Transporting frozen food, dairy products, vegetables, fruit vaccine medicine etc. |
| Materials | Stainless steel, glass fiber reinforced plastics, aluminum alloy, or color steel plate, etc. with PU, etc. sandwiched. |
| Wagon Thickness | 50-60cmb |
| Lowest Refrigeration Temperature(ºC) | -16 degree |
Quality Assurance: Our factory's trucks are ISO9001:2008 certified and come with relevant certificates such as CCC, B&V. The chassis and accessories are sourced from original factories with anti-counterfeiting labels.
Years of Experience: With nearly 5 years in the industry, our company excels in after-sales service, ensuring prompt production and delivery within 15 working days. We offer a one-year after-sales service guarantee.
Price Advantage: Partnered with renowned chassis suppliers like China National Heavy Duty Truck, Dongfeng, Foton, FAW Group, Jianghuai, we offer competitive prices without compromising on quality.
Price Terms: FOB, CIF
Payment: 30% deposit upon order confirmation, 70% balance before shipment. Payment methods accepted: T/T, L/C.
Delivery Time: Products will be delivered within 25 working days upon receiving payment.
