| Price 1-4 Pics | US $45000 |
| Price 5+ Pics | US $42000 |
| After-sales Service: | 7X24 Hous Online After Sales Service |
| Customization: | Available |
| Warranty: | 12 Months |
| Certification: | ISO9000, CCC |
| Emission Standard: | Euro 3, 4, 5, 6 |
| Payload: | |
| Transmission Type: | Manual |
Dump Truck, 6x4 8x4 dumper truck, World wide using tipper truck ,Rectangular field grid, bottom 12 sides 10, Q65 manganese plate, set beam, five longitudinal beams, detachable through shaft, rear door full channel steel, Jiaheng 196 oil cylinder
Function:
TIPPER TRUCK (also called tipping truck, dump truck, dumper truck, dumping truck, rear lifting truck, bucket lifting truck, ) is a vehicle designed primarily for transporting various kinds of materials and equipenmts like as the sand, mud, garbage and etc. It is mostly used in the construction site with the mixer truck , boom truck, water truck.
| Transmission Type | Manual | Power | Diesel |
| Load Capacity | 21-50t | Emission Standard | Euro 2,3,4,5 |
| Drive Wheel | 6×4 | Engine Capacity | ＞8L |
| Seats | ≤5 | Horsepower | 251-420hp |
| Tire Certification | ECE, GCC, ISO, DOT | Tire Design | Radial |
| Dumping Type | Front Lifting Style | Condition | New/Used |
| Chassis Brand | HOWO Hw76/Shacman | Transport Package | by Bulk Ship or Roro |
| Lifting Cylinder | Hyva | Origin | China |
| HS Code | 8704109000 | Production Capacity | 10000 Units Per Year |
Product Parameter:

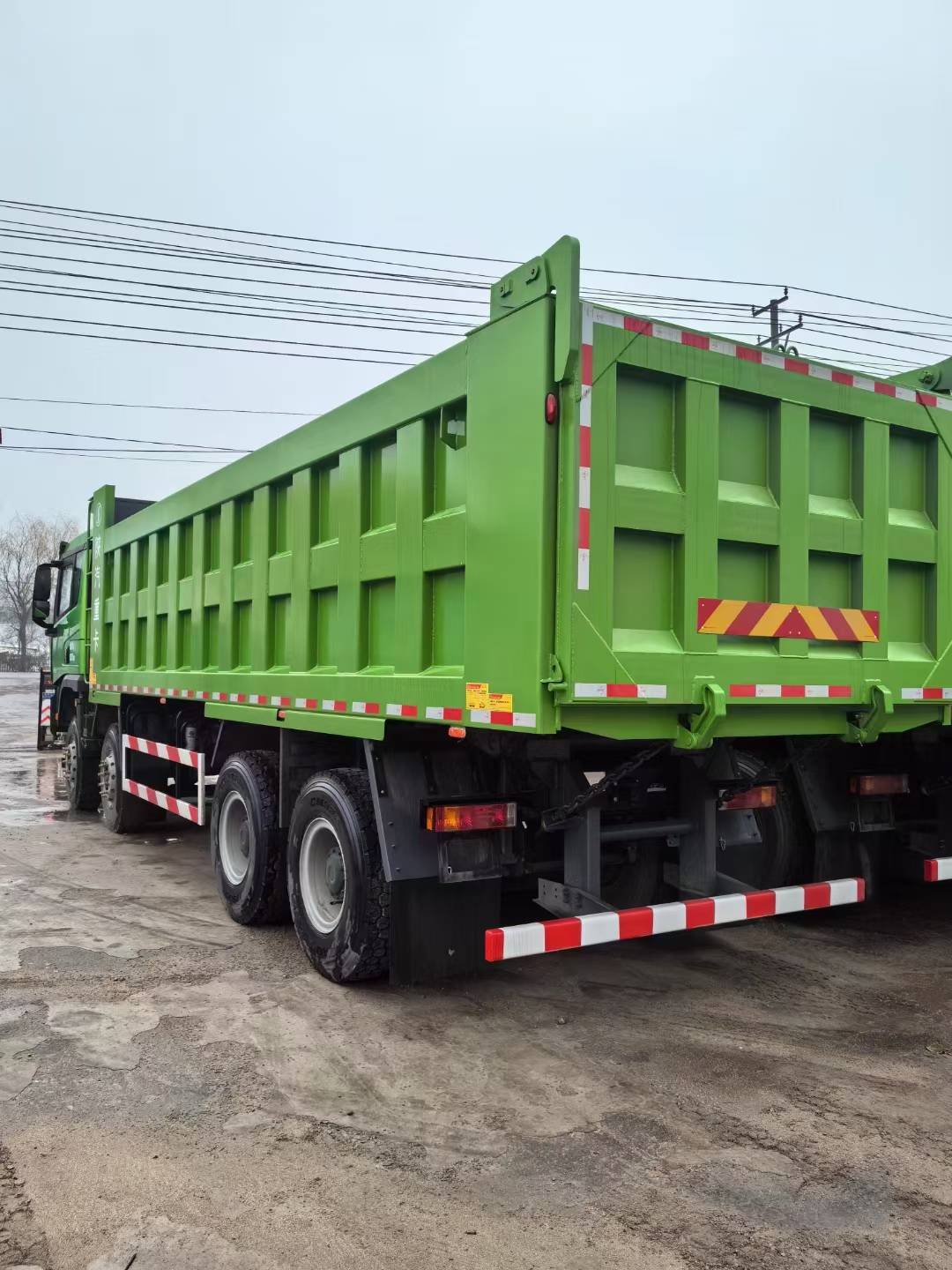

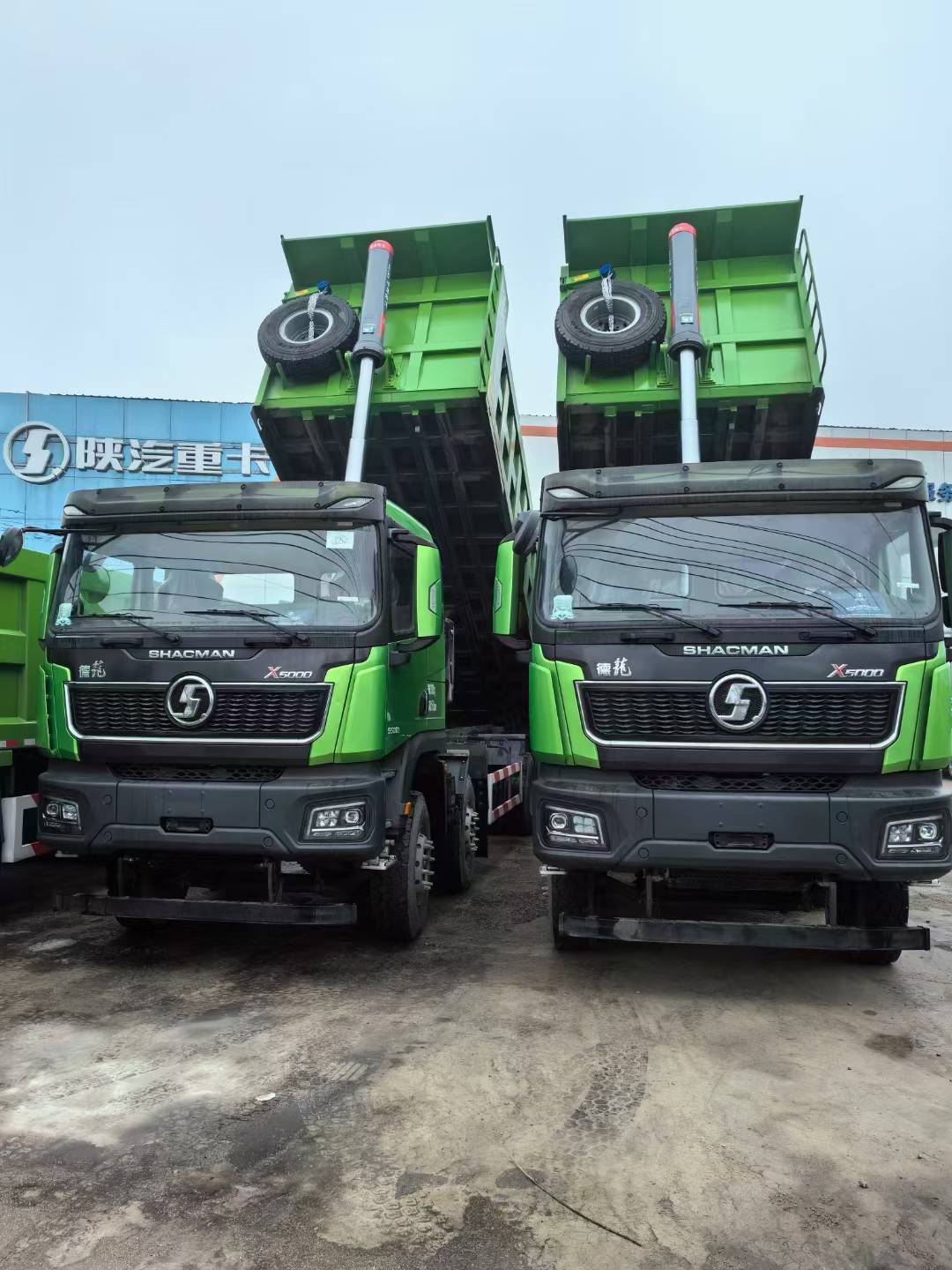

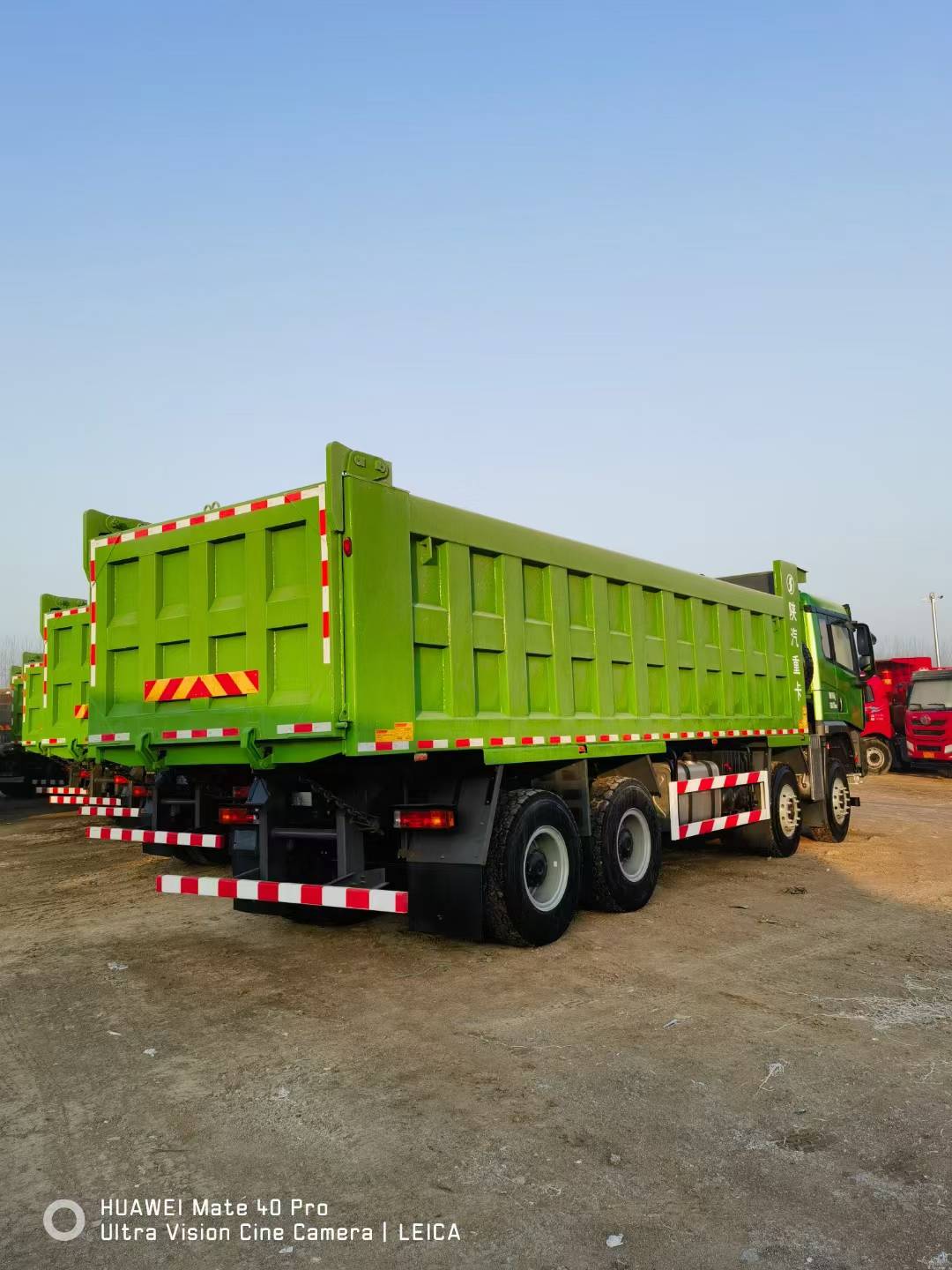

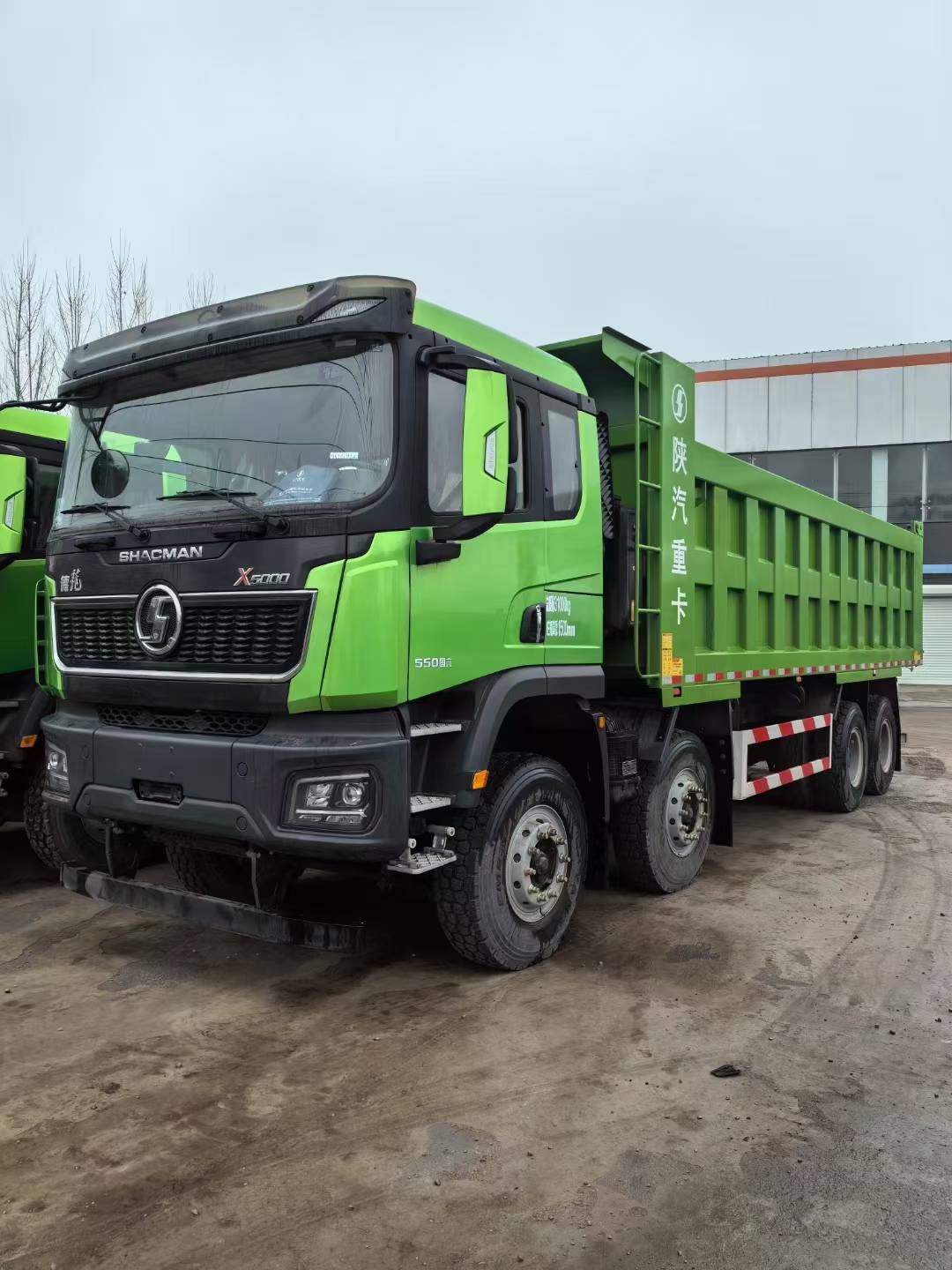

| Shacman X5000 Used New Second-hand Mining right Tractor Tipper Dumper Dump Truck | ||
| General | Model | Shaman X5000 SX3319XD426 |
| Cabin | Shacman X5000 Vitality Green (metal paint) | |
| Overall Dimension (LxWxH) (mm) | 10560x2496x3650 | |
| Wheelbase (mm) | 3825+1350 | |
| Loading Weight | 31000kg | |
| Suspension | Front suspension: 10 pcsleaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | |
| Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | ||
| Steering System | Z,F brand power steering, model Z,F8118 , hydraulic steering with power assistance | |
| Braking System | Front drum rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms | |
| Fuel TankVolume(L) | 400 | |
| Dead Weight | 15500 | |
| GrossVehicle Weight (kg) | 31000 | |
| Rated Loading Weight (kg) | 15300;optional | |
| Min.GroundClearance (mm) | 314 | |
| Approach/Depart Angle(°) | 19/ (27/65) | |
| Gradeability (%) | ≥50 | |
| Min. Turning Diameter (m) | 15 | |
| ChassisModel | SX3319XD426(Left/ Right Hand Driving Type Optional) | |
| Clutch | Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance | |
| Engine | Model | SINOTRUKD10.34-40 WD615.47,Euro2,371HP 6-cylinderin-linewithwatercooling,turbo-chargingandintercooling Displacement:9.726L |
| Remark (Engine Power Option) | 550 HP,336HP,371HP | |
| Displacement | 9.726L | |
| Type | 6 cylinders in-line, four strokes, turbo-charged water-cooling | |
| Emission Standard | Diesel, Euro 5 | |
| Running Mechanism | Gear Box | FAST BRAND, manual operation, S13MDQ, 13 forward and 2 reverse, with Power Take-Off (PTO) |
| Front Axle | HF9, 9500kg with drum brake system | |
| Rear Axle | HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.92 | |
| Tire | 12.00R20 (12.00-20, 315/80R22.5 optional), with one spare tyre | |

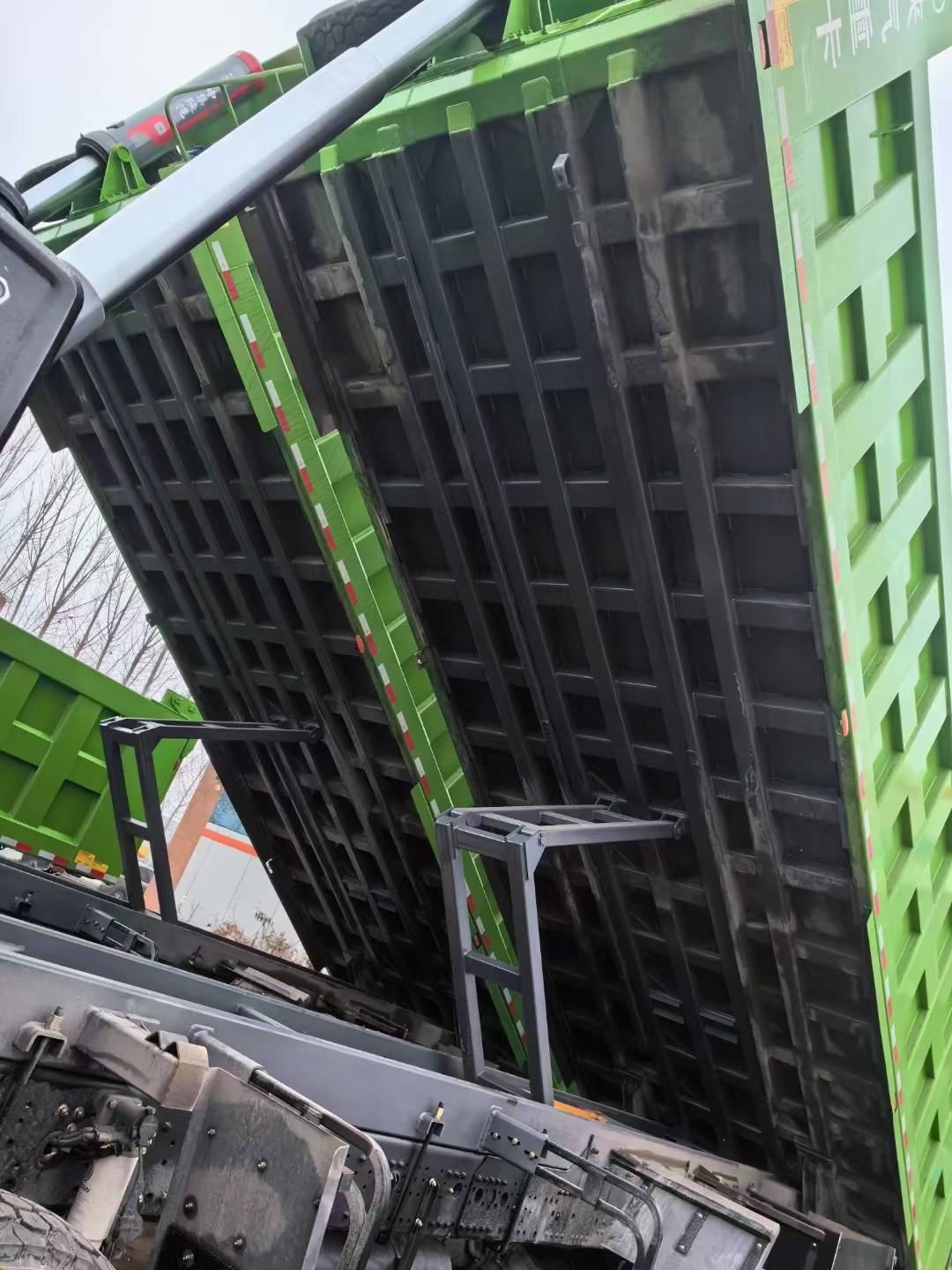

| Cargo Body | Cargo Body Size (LxWxH) (mm) | 8000x2350x1500 |
| Thickness | bottom:12mm; side:10mm,Q65 manganese plate | |
| Cargo Body Volume (m3) | 28cbm | |
| Lifting type | HYVA lifting cylinder; Backward tipping type | |
Advantages:
1. We will do quality test from the production to the finish of the whole truck.
2. We have an experienced and technological team to customize the best products.
3. Spare Parts Supply: We can supply spare parts for many brands, such as SINOTRUK, BEIBEN, FAW, FOTON, SHACMAN,DONGFENG and so on.
4. All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way.
Packaging & Shipping
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
FAQ
Q1. Is your company a factory or a trading company?
A: We are a leading manufacturer of special trucks, tank trucks, trailers, and spare parts in China. Welcome to visit our special vehicle production base in Suizhou City, China.
Q2. What are your payment terms?
A: T/T 30-50% as deposit, the rest to be paid before delivery. We will show you photos of the products and packages before you pay the balance.
Q3. What are your delivery terms?
A: EXW, FOB, CFR, CIF, DAF, DDU.
Q4. How about your delivery time?
A: Generally, it takes 20 to 30 days after receiving the advance payment. The specific delivery time depends on the items and quantity of the order.
Q5. Can you customize the products to meet my requirements?
A: Yes. We have a professional R&D team, and we can produce products exactly as you require.
Q6. What is the price of your products?
A: We are factory direct sales, so the price is very competitive. Different products have different prices. The price
also depends on your special needs. To know the exact price, please contact us!
Q7. Do you test all the goods before delivery?
A: Yes, we do 100% testing before delivery.
Q8. What service can I get from you?
A: We provide lifetime tracking service and a one-year free warranty for all our products.
