Best-Selling Dongfeng High Performance Dry Cleaning Road Washing Sweeper Truck Road Garbage Dust Sewage Cleaning Sweeper Machine Vehicle
Reliable Dongfeng 4X2 Street Dust Washing Machine Road Sweeper Truck Road Cleaning Vehicle Street Sweeper Electric Road Sweeper Vehicle
4X2 Road Sweeper Truck Made in China Vacuum Road Street Cleaning Vehicle Street Cleaner Truck Vacuum Road Floor Sweeper Vehicle
Sinotruk Isuzu Shacman Foton Dongfeng 6m3 Stainless Steel Water Dustbin Tanker Road Sweeper Trucks Tender Price
| Price 1-4 Pics | US $1,8400.00 |
| Price 5+ Pics | US $18190.00 |
| After-sales Service: | 7X24 Hous Online After Sales Service |
| Customization: | Available |
| Warranty: | 12 Months |
| Certification: | ISO9000, CCC |
| Emission Standard: | Euro 3, 4, 5, 6 |
| Payload: | 3.5CBM |
| Transmission Type: | Manual |
Product Description

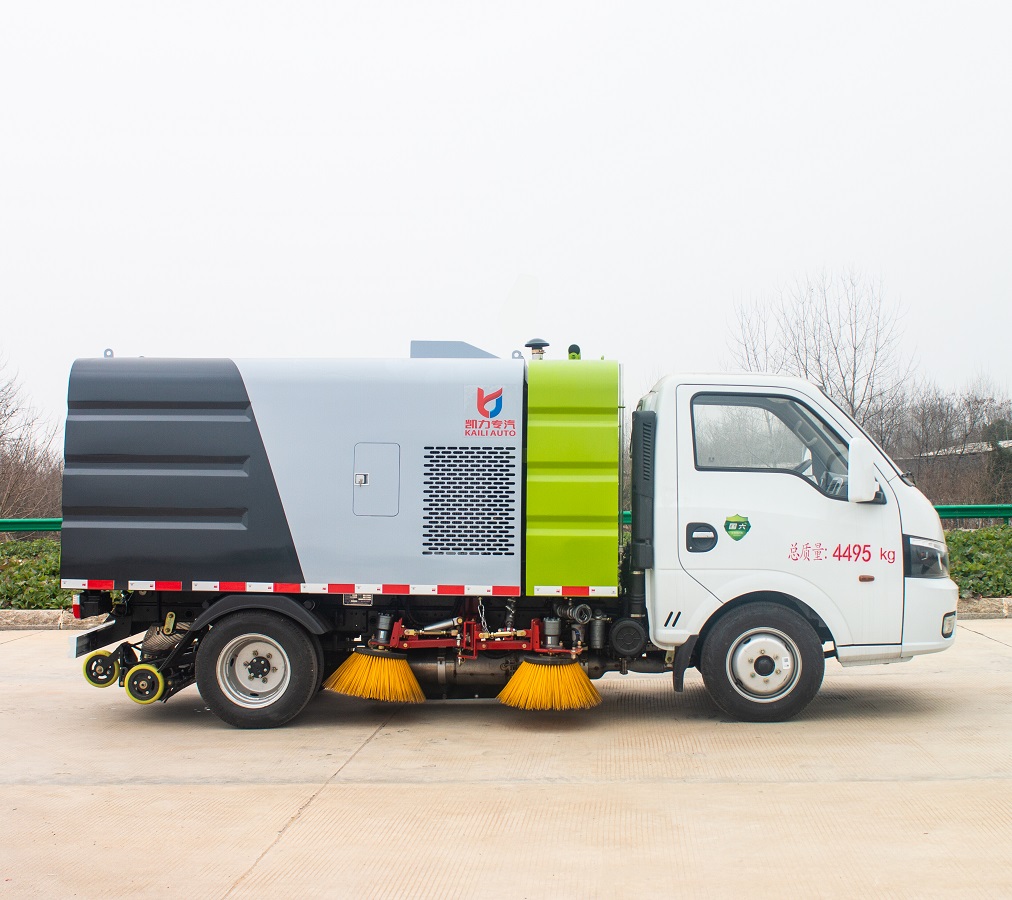

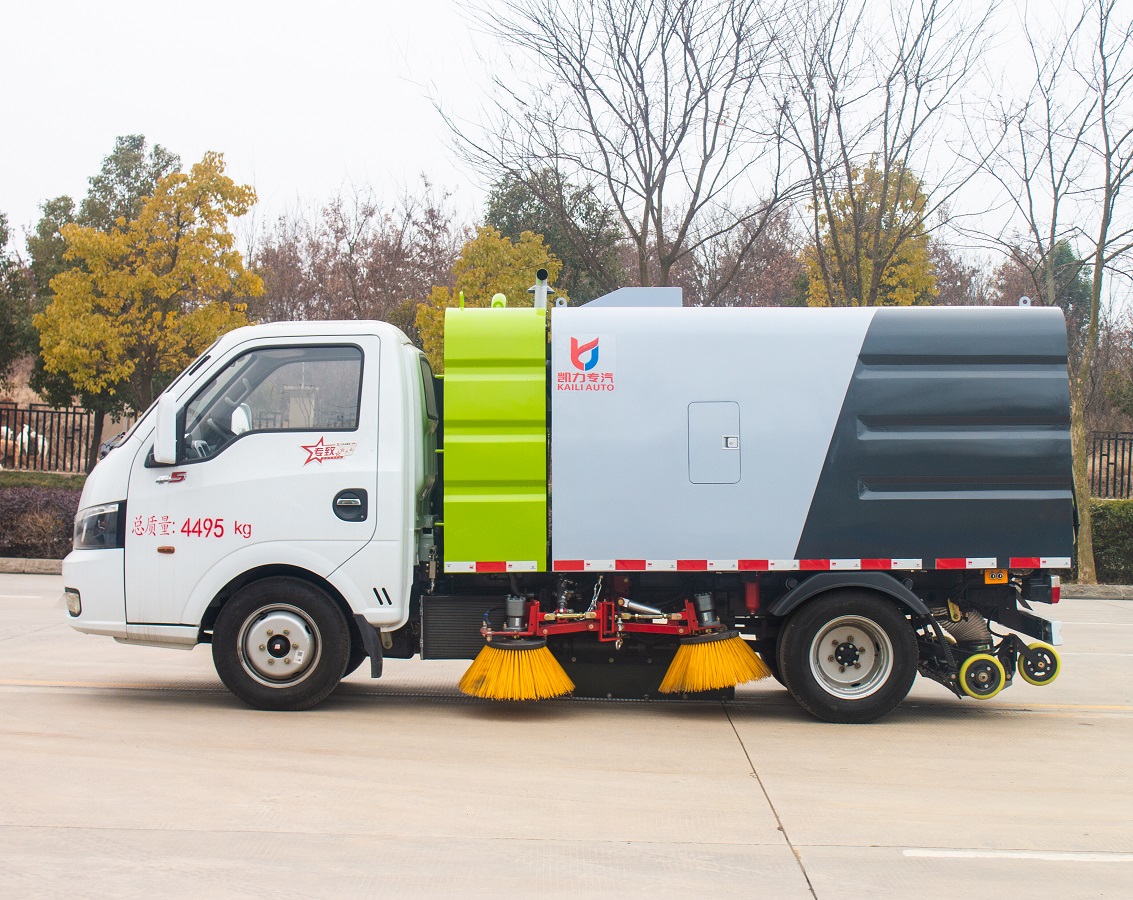

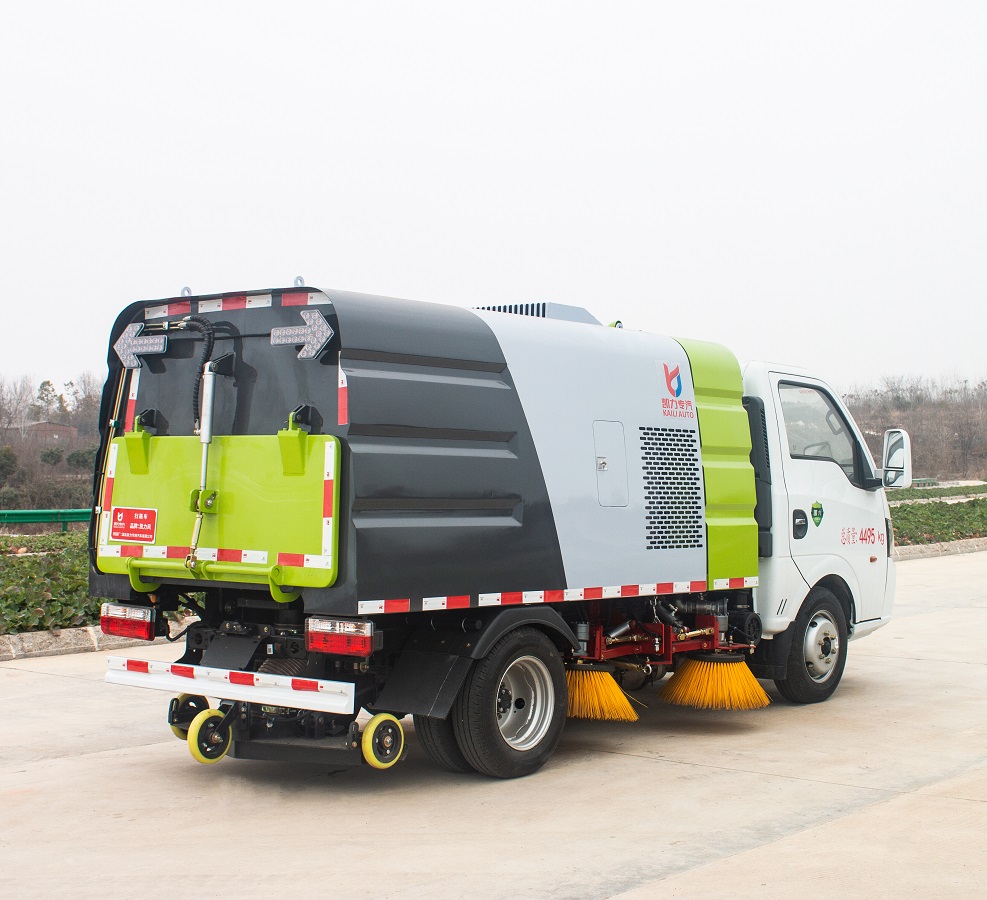

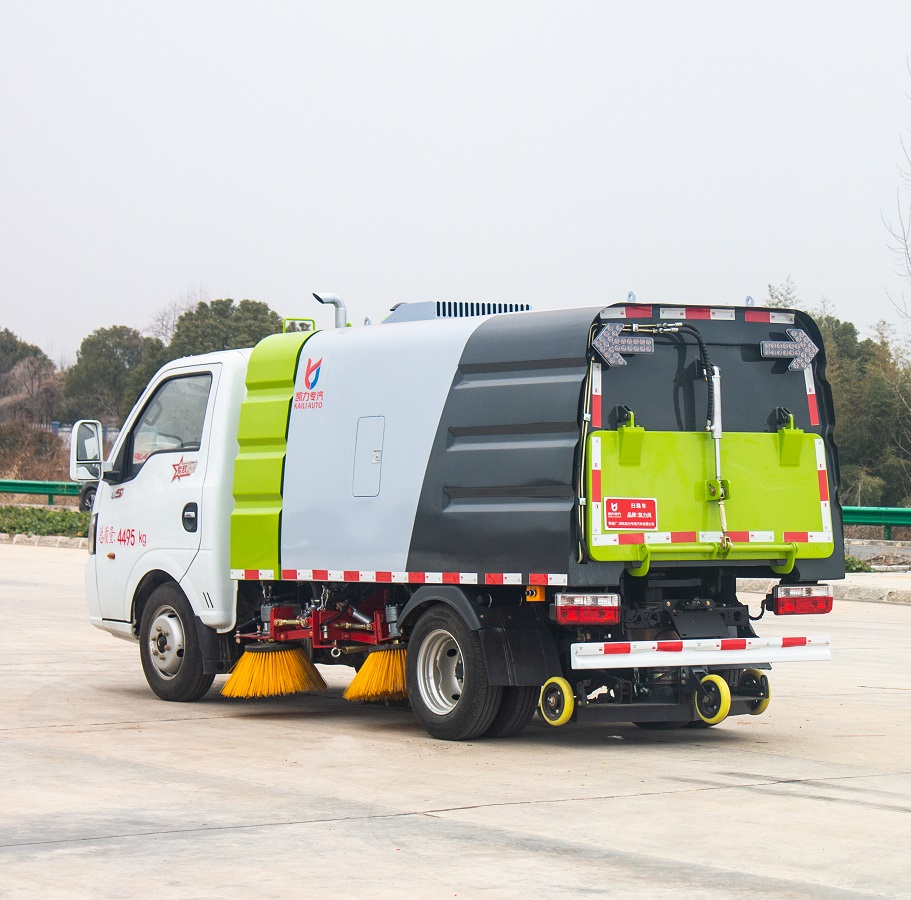

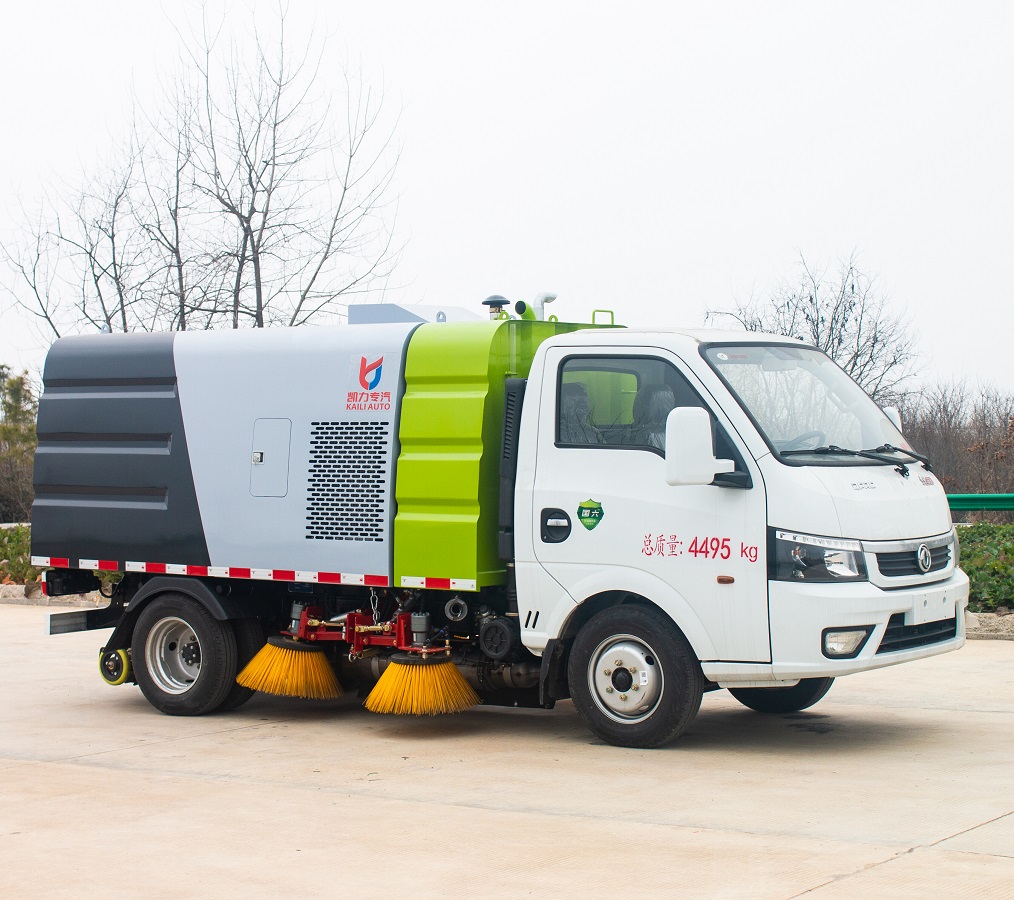

Isuzu Dongfeng Diesel or Electric Road Street Cleaning Truck Flushing Water Tanker Cleaning Truck Street Floor Sweep Sweeping Sweeper Truck Dust Vacuum Vehicle
 | Auxiliary engine Provide power for fans and high-pressure water pumps, install air filters and engine oil The filter element effectively prevents dust from entering the secondary engine, which can cause cylinder pulling. |
| Fan transmission system Adopting a brand high-power wear-resistant maintenance free centrifugal fan with strong suction power,Low noise, anti vibration, high power, long service life. |  |
 | hydraulic oil tank A container used to store the oil required to ensure the operation of a hydraulic system. |
| cleaning device The two center mounted sweeping discs have anti-collision and shock-absorbing functions, which can clean the road surface and scrub The curb has a stone surface. |  |
 | hydraulic system Complete the hydraulic actions of each scanning disc and box. |
| electronic control system PLC cab operation, one click operation system, easy to operate,Safe and reliable. |  |
 | Suction nozzle device Sweep the garbage, sewage, and stones that cannot be swept up by the brush Absorb, super strong dust collection, improve overall cleanliness rate. |
| Sewage tank strut sensor Check whether the support rod is lifted and retracted, and ensure the safety of the box's return action Protect. |  |
 | Clear water level sensor Detect the minimum liquid level of the clean water tank and provide a water shortage signal for the tank. |
| Anti overflow alarm Used to check if the sewage tank is full. |  |
 | Pneumatic control box Complete the pneumatic control actions of each cylinder in the waterway system. |
| Spray waterway Sweep disk spray and suction cup spray are used for lowering during cleaning operations Dust and dust removal function. |  |
 | reel 20 meter automatic return reel, capable of cleaning small wall advertisements and stubborn mud on the ground Stains can also be cleaned on the vehicle body and other equipment and facilities. |
| Left and right forward charging Adjustable direction, mainly used for road surface watering, cleaning, and dust reduction The function is to flush road stones and garbage onto the curb for easy cleaning. |  |
 | Corner spray Strong pressure, large flow, can clean road markings and curbs, efficient |
| Convenient. Rear spray waterway It can carry out spray on the road surface to effectively suppress dust. |  |
 | clean water tank Electrophoretic process rust prevention treatment, corrosion resistance, acid and alkali resistance, good paint adhesion Long service life, equipped with low water level alarm and overflow prevention device. |
| dustbin The garbage bin is made of stainless steel material, with a rectangular corrugated structure and a shape Beautiful and structurally reliable. |  |
 | Sewage tank visual sewage pipe opening Observe the position of dirt inside the box through the window, and install a sewage alarm device inside,once the warning line is reached, the operation will automatically stop. |
| Water inlet Connect the water hose with KD65 standard connector to the fire hydrant interface and open the ball Valve, inject water into the water tank through this interface. |  |
 | Tail control system To prevent misoperation caused by visual obstruction, a control operation box is installed at the rear of the vehicle, which can operate functions such as rear door switch, dust box lifting, high-pressure water gun, and large box self-cleaning. |
| Lighting device Night work can be done by turning on the lighting device and observing the sweeping disc, suction cup, etc homework reality. |  |
 | Water level gauge Water injection and spraying operations can observe the water level through a water level gauge. |
Product Parameters
| Item | Parameters |
|---|---|
| Wheelbase (mm) | 2600 |
| Engine Model | Liuzhou Engine, 113 horsepower |
| Engine Power (kW) | 83kW |
| External Dimensions (Length × Width × Height) (mm) | 5010*1660*2190, 2410 |
| Unladen Mass (kg) | 3220 |
| Maximum Total Mass (kg) | 3495 |
| Operating Speed (km/h) | Engine speed |
| Number of Rated Personnel | 2 persons |
| Tire Specification | 175R14LT 8PR, 185R15LT 8PR, 185R14LT 8PR |
| Fuel Type | Gasoline |
| Maximum Speed (km/h) | 100 km/h |
| Item | Parameters |
|---|---|
| Auxiliary Engine | Yuchai Power, 57 horsepower |
| Auxiliary Engine Power (kW) | 42kW |
| Blower System | Maintenance - free centrifugal blower |
| Automatic Clutch | Centrifugal type, imported material, one - year warranty, service life up to 20,000 hours |
| Number of Sweeping Disks | 4 |
| Water Tank Capacity | Clean water tank: 0.5 cubic meters; Sewage tank: 1.5 cubic meters |
| Operation Mode | Manual/Electric control |
| Suction Plate | Center - mounted suction plate |
| Garbage Bin | Stainless - steel garbage bin, lifted by cylinder for unloading |
| Sweeping Width | Maximum sweeping width is about 2 meters |
| Main Components | Sweeping disk bracket, sweeping disk, cylinder, oil pipe, connecting rod, adjusting rod, hydraulic motor, etc. |
| LED Arrow - head Lights | Rear LED arrow - head lights, indicator lights |
| Hand - held High - pressure Water Gun | Hand - held high - pressure water gun with 20 - meter automatic retractable hose. Can clean wall advertisements, stubborn ground mud, and also wash vehicles. (Optional) |
| Mid mounted 4-scan disk, Weisen Bole solenoid valve group, key electronic control components using Schneider electrical switches, high reliability, long service life. Stacked valve group mode, well-designed with low failure rate, manual pump emergency system Maintenance free centrifugal fan, high-power wear-resistant maintenance free centrifugal fan, low noise, high efficiency, large air volume, long service life The auxiliary engine Yuchai has 57 horsepower and is equipped with an air filter and oil filter to effectively prevent dust from entering the auxiliary engine and causing cylinder pulling. Automatic clutch reduces the impact on the engine during fan start and stop The clutch has a high degree of wear during use. The advantages of long service life, low noise, low fuel consumption, and cost savings Mid mounted suction cup, LED arrow light, rear LED arrow light, serving as a warning function (Optional) Handheld high-pressure water gun, 20 meter automatic return reel, can clean small wall advertisements, stubborn mud stains on the ground, and also wash vehicles. Reverse image/vehicle centralized control, PLC cab operation, reverse image. One click operating system. Low pressure water pump, Tianyi 60/90 water pump, stainless steel material garbage bin, self-cleaning function of garbage bin, cleaning garbage bin after unloading garbage | |
| Category | Item | Parameters or Configuration |
|---|---|---|
| Special - purpose and Chassis Parameters | Hydraulic System Relief Pressure (Mpa) | 10 - 15 |
| Hydraulic Oil Tank Volume (L) | ≥50 | |
| Electrical System | Consists of chassis circuit, auxiliary generator circuit, and dedicated work device operation control circuit | |
| Composition of Electric Control Box Panel | Auxiliary engine tachometer, auxiliary engine water temperature gauge, oil temperature alarm device, various operation control switches | |
| Blower Brand | Weiye maintenance - free centrifugal blower. Optional Luoyang Beipo maintenance - free blower | |
| Blower Rated Speed (r/min) | 2700 | |
| Transmission Form | Auxiliary engine, clutch, 4 high - temperature - resistant A - type belts | |
| Blower Belt | Zhejiang Sanlishi | |
| Automatic Clutch | Well - known brand clutch with a service life of up to 20,000 working hours | |
| Air Volume (m³/h) | 5000 - 7800 | |
| Composition of Sweeping System | Sweeping disk bracket, sweeping disk, cylinder, oil pipe, connecting rod, adjusting rod, hydraulic motor, etc. | |
| Sweeping Brush Opening Diameter (mm) | Φ800 - 900 | |
| Sweeping Disk Motor Speed (r/min) | 140 | |
| Number of Sweeping Disks | 4 | |
| Number of Sweeping Brushes per Sweeping Disk | 22 | |
| Front Sweeping Disk Inclination Adjustment | Forward inclination 5° - 15°, backward inclination 5° - 10° | |
| Rear Sweeping Disk Inclination Adjustment | Forward inclination 5° - 10°, backward inclination 5° - 10° | |
| Suction Pipe Diameter (mm) | Φ200 | |
| Rigid Part of Working - State Suction Nozzle Ground Clearance (mm) | 5 - 8 | |
| Auxiliary Operation System | Tail electric - controlled operation system, controlling the lifting of the large box and the opening and closing of the rear door |
Company Profile
Our Advantages
cleaning and sweeping vehicle is an efficient sanitation vehicle that integrates the functions of a road sweeping vehicle and a high-pressure cleaning vehicle. The vehicle adopts Dongfeng Tianjin second-class chassis and is equipped with a secondary engine and its transmission device, garbage bin, clean water tank, cleaning device, dust reduction system, suction nozzle, low-pressure flushing system, high-pressure cleaning system, hydraulic system, pneumatic system, electrical system and other components.
Hot New Or Used Large Dongfeng Street Sweeper Heavy-duty Diesel 18000KG Road Cleaning and Sweeping Vehicle 8CBM Washing Sweep and Suck Truck 5180
This car has diverse functions, beautiful and elegant appearance, and superior performance that is efficient, environmentally friendly, and reliable.
After Sales Service
Answer and solve your questions and consult within 24 hours
Overseas job site service available
One year guarantee about three key parts(axle, engine, transmission).Other spare parts could be supplied by cost price.
Other services:
1.All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
precautions
matters needing attention:
1. For the running in mileage of the car chassis, please refer to the accompanying car chassis user manual for running in and maintenance after running in, such as cleaning the air filter element and replacing the engine oil. running-in
During this period, pay attention to checking for any abnormal vibration, noise, and water leakage in each part, whether the fan drive belt and hydraulic pump drive belt are slipping, and whether the electronic control switches and instrument indicators are normal.
2. Before using the vehicle, it is necessary to check for any oil, water, or gas leaks in the entire vehicle, and if necessary, eliminate them. Check the oil level of the main and auxiliary engines, the water level of the radiator, and if necessary, add oil and water. Check the water system
Are the structural components such as scanning disks and suction cups functioning properly.
3. In winter, before stopping the vehicle, follow the product manual to carry out waterproof and antifreeze operations, and drain the remaining water in the water circuit, water pump, water valve, nozzle and other components.
4. When the engine is running, maintenance or repair of the chassis auxiliary engine, water pump, and hydraulic system is not allowed.
5. When cleaning the vehicle, do not use high-pressure water to directly flush the top of the hydraulic oil tank, auxiliary engine, radiator, solenoid valve, coil, and terminal parts.
To ensure the safety of operators and equipment, the safety pole under the garbage bin must be opened during debugging, installation, testing, and maintenance operations. And secure the safety pole with a safety pin to ensure that personnel and equipment are in contact
Be prepared for safety. Before resetting the trash can after homework, the safety pole should be lowered first.
PRODUCT SHIPPING (RORO OR BULK SHIP OR CONTAINER)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks.
