Factory Price Direct Sinotruk Shacman Faw HOWO Iisuzu 34m 38m 30m Telescopic Boom Bucket Truck Telescopic Boom Aerial Working Lift Platform Truck

Aerial work truck,Scissor type aerial work platform,aerial platform truck,truck mounted aerial work platform

aerial work truck,aerial platform trucks,truck aerial platform telescopic,aerial work platform truck,truck aerial work platform,truck mounted aerial platform

Factory Price Direct Sinotruk Shacman Faw HOWO Iisuzu 34m 38m 30m Telescopic Boom Bucket Truck Telescopic Boom Aerial Working Lift Platform Truck

The working arm adopts 7-section high-strength steel synchronous telescopic operation, with a maximum working height of 31 meters. It has front V-shaped and rear V-shaped support legs, which can be adjusted separately. The working arm has a 360 degree platform bearing capacity of 200kg and dimensions of 1600x700x1000mm

Emergency pump automatic engine ignition and shutdown

	1.Baking process: The whole vehicle is coated with powder and baked paint. All structural components are first coated with powder and baked paint, and then assembled on an assembly line. The surface of the baked paint is smooth and flat, with bright colors, good corrosion resistance, durability, and high temperature resistance.
	Balance valve: ensuring the smoothness and safety of oil cylinder operation
	Steel wire rope: Double steel wire rope telescopic structure, pre tensioned steel wire rope, safer, smoother telescopic, increased transmission pulley, more effortless telescopic.
	Rotary mechanism: 21 inch turbine rotation, trapezoidal base platform with large force surface and stronger stability
	Proportional valve: a well-known brand of proportional valve that controls the fuel supply for various actions on the vehicle, used to adjust speed and ensure smooth and stable operation
	Crane arm head: Shanchai style crane arm head, with two additional support points compared to traditional ones, with small running clearance and smoother operation
	Length angle sensor: Upgraded length angle sensor, steel wire pull Calculate the length of the boom based on the percentage of wire passing, making it less likely to break
	Coil: Three and one composite coil, oil and electricity integrated, convenient and practical
	Double amplitude hydraulic cylinder: enlarged and thickened for smoother lifting, and equipped with explosion-proof valve to ensure high-altitude safety
	Big arm: a new 18 sided structure with synchronous extension and contraction, polygonal big arm structure, enhancing the strength of the big arm, and a protective cover installed on the external telescopic oil cylinder
	Double leg support: triangular reinforcement at the root and steel plate reinforcement on both sides horizontally, stable, sturdy and more durable

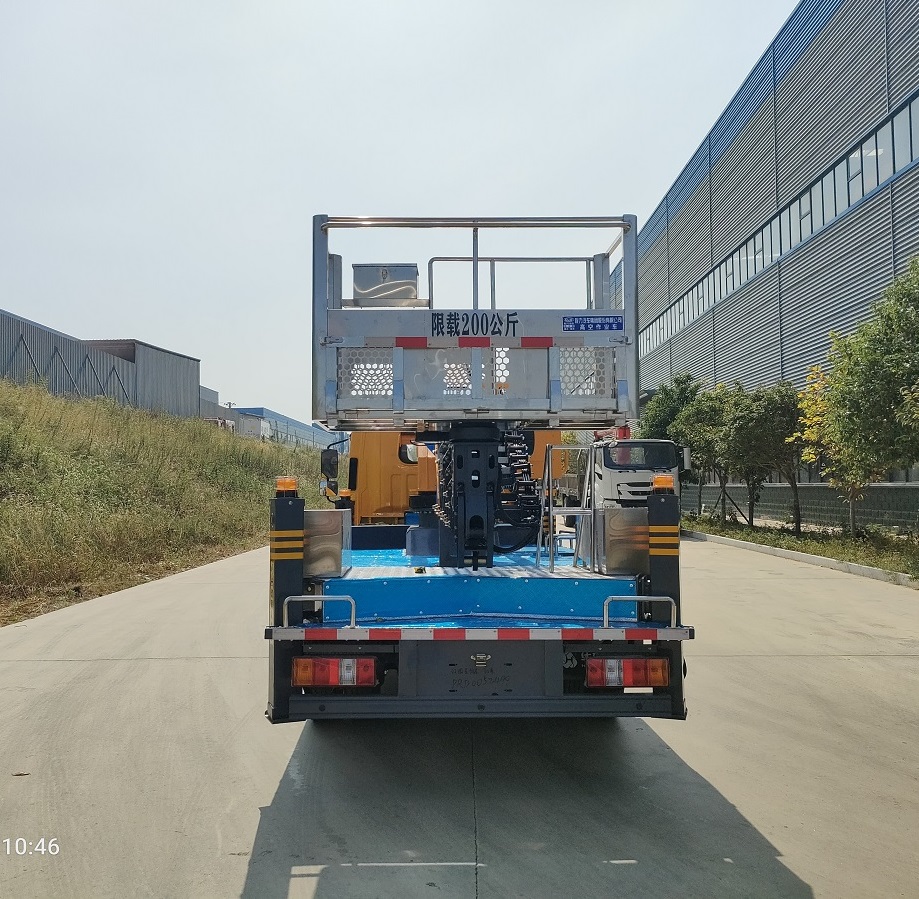

	Stainless steel hanging basket: corrosion-resistant, beautiful and durable, easy to clean
	Emergency stop device for work platform: used for emergency stop operation and restricting the arm Well known brand electronic control for rack operation, equipped with wireless remote control for real-time data display and settings Simple and easy to operate, sensitive and fast to operate, automatically limits the working range, and when the working range reaches When the specified value is reached, the dangerous direction of work is automatically restricted. The controller can ignite the engine, Flameout control
	Rear support leg: front V-shaped and rear V-shaped double section hydraulic support leg, rear support leg sinking type with lower center of gravity and stronger stability

Advantages of Aerial Work Platform Trucks Vehicle

1. Newly upgraded appearance and boom: Made of high-strength 960 material, with perfect details and durability.

2. Vehicle height control: All 33 meter aerial work vehicles have a vehicle height not exceeding 2.8 meters and are suitable for environments with elevated and height restrictions.

3. Tailless design: When working on the side of narrow alleys, leave sufficient safety distance for the adjacent lane.

4. Homework platform: Optional 220V mains power interface, can use daily electric tools, and is not affected by the working environment.

5. Inaccurate support on the ground restricts work: When the support on the legs is not supported on the ground (soft legs), the lifting arm will restrict work in dangerous directions. (Optional)

6. Wireless remote control operation

7. Computer control, automatic limiting, dangerous work alarm, excellent safety performance. There is a monitor when getting off the car, which displays the real-time working conditions of the entire vehicle

8. Octagonal working arm, synchronous extension and contraction, compact structure, high operating efficiency, and large operating range. The telescopic oil cylinder is placed inside (outside), and the steel wire rope (or chain) telescopic mechanism makes it easier to observe the fault point and facilitate maintenance.

9. The vehicle's electrical system adopts a CAN bus control system, with neat and simple wiring. There are three operations for the entire vehicle: platform operation, and wired or wireless operation on the ground, which is more convenient to observe the working space, safe and reliable, and has high work efficiency.

10. After sales guarantee; Non customer caused damage, unconditional after-sales service for any malfunction, customer zero cost solution.

Performance and characteristics

1. Blue license C-license for worry free driving, good passability, suitable for working in narrow spaces.

2. The maximum working height can reach 33 meters.

3. The super large homework platform can carry 200KG (up to 3 people) and can rotate 360 °.

4. The steel structural components of the entire vehicle are made of high-strength materials, which have light weight, high strength, high toughness, and high reliability.

5. The electro-hydraulic proportional valve group is equipped with advanced CAN bus control system and wireless remote control, making operation safer and more convenient.

6. The car is equipped with a 5-inch LCD display screen, which displays real-time detection of arm length, elevation angle, platform height, and operating height.

7. The boom adopts a domestically leading 8-section steel wire rope telescopic structure, making work safer and more stable.

8. The front and rear V-shaped legs have a wider lateral span and stronger safety and stability. They can be equipped with a "soft leg" protection function (optional) and can be operated simultaneously or separately to adapt to various working conditions.

9. Main supporting hydraulic and electrical components: load sensitive proportional valves, balance valves, CAN bus control systems, etc. are all produced by well-known domestic and foreign manufacturers.

10. The chassis adopts Dongfeng Dorica D5 National VI chassis, equipped with air conditioning, and the steering wheel adopts hydraulic assistance.

11. The suspended basket is made of high-strength stainless steel, which is not easy to damage and has a lightweight structure design that is resistant to corrosion and has a higher load-bearing capacity.

12. Octagonal working arm, synchronous telescopic, compact structure, high operating efficiency, and large operating range. External telescopic oil cylinder and wire rope telescopic mechanism make it easier to observe the fault point and facilitate maintenance.

13. The vehicles electrical system adopts a CAN bus control system, with neat and simple wiring. The whole vehicle has two operations: computer operation, wireless remote control operation, and (optional) can also be operated in the basket, which is safe, reliable, and highly efficient.

precautions

1. It is strictly prohibited to drive the oil pump while driving (turn off the power take-off while driving).

2.Before starting the homework, it is necessary to carefully check and confirm that the homework vehicle has no faults.

3.During homework, park the vehicle on a flat and solid road surface, and it is prohibited to operate the work vehicle on slopes with a gradient greater than 5 degrees.

4. It is strictly prohibited to not place the support legs during homework, and it is strictly prohibited to adjust the support legs during the homework process (with people on the work platform).

5.When the wind speed exceeds level five, work should be stopped.

6.When working at heights, operators must fasten their safety belts and wear safety helmets.

7.During high-altitude operations, the engine must work at high speed and operators are strictly prohibited from leaving the control panel.

8. High voltage live working is strictly prohibited.

9.During the operation of the aerial work platform, it is strictly prohibited to stand under the telescopic arm. When the working arm is in motion, it is strictly prohibited to operate the multi way reversing valve of the vehicle.

10. Pay attention to observing and avoiding surrounding obstacles during operation.

11. Do not move the vehicle after the working arm has moved.

12. Regularly check whether the screw interface of the boom wire rope is loose, and tighten it in a timely manner if there is any looseness.

13. Regularly check whether the nuts at the connection of the slewing support are loose, and tighten them in a timely manner if they are loose.

14. Regularly check whether the saddle bolt is loose, and tighten it in a timely manner if it is loose.

15. Vehicles are strictly prohibited from operating beyond safety limits.
