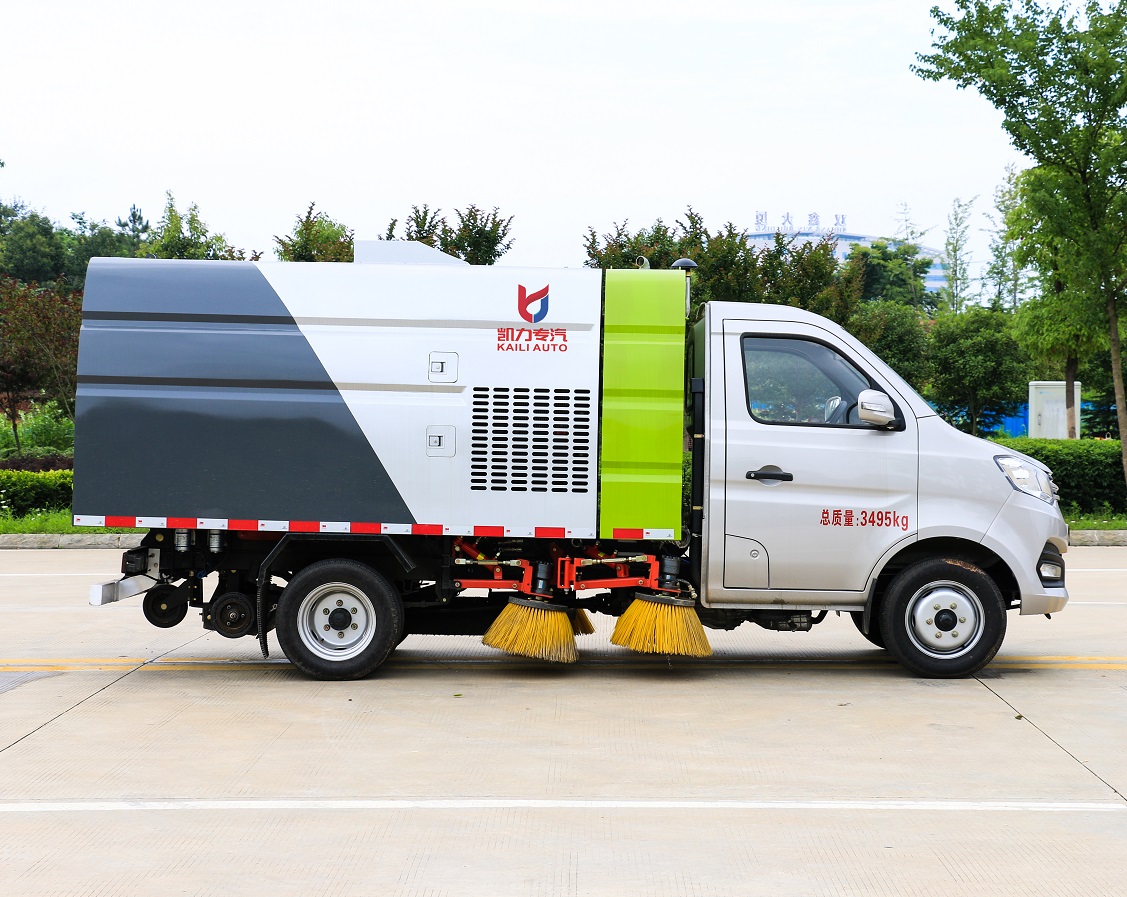

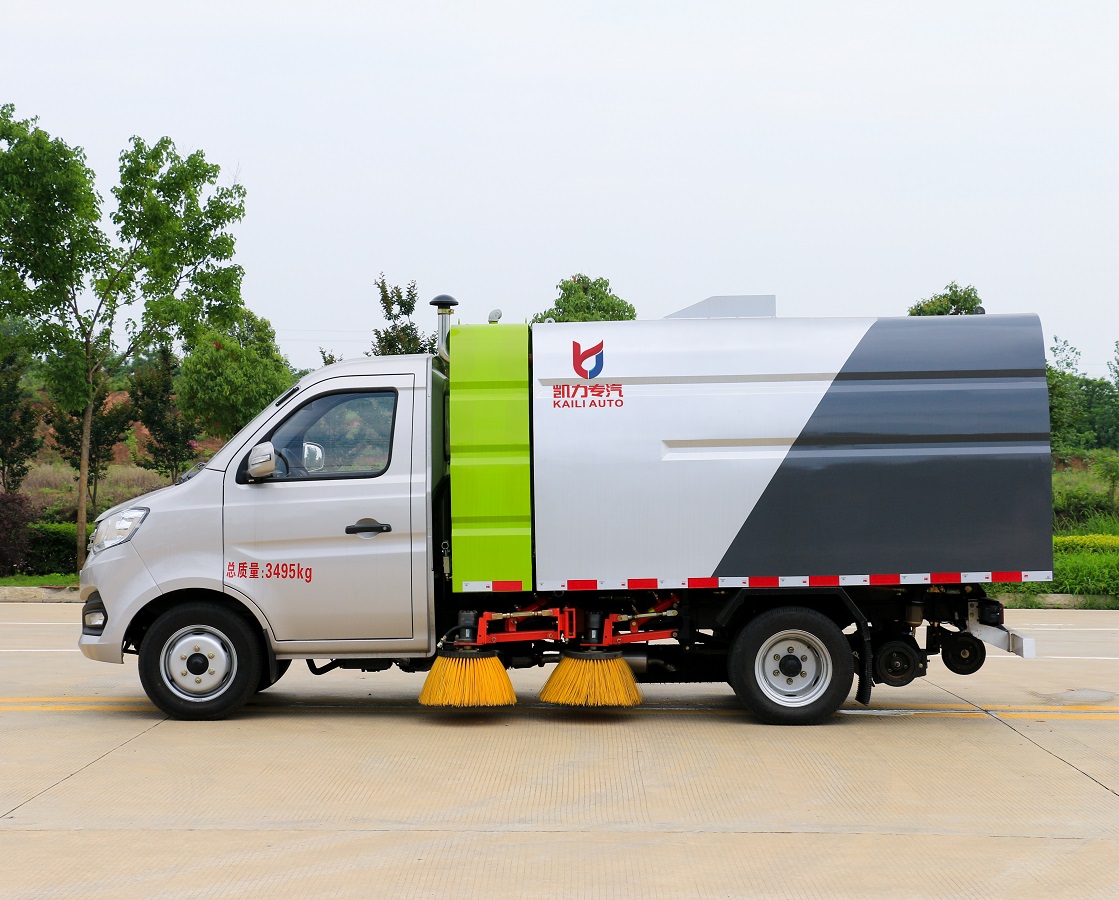

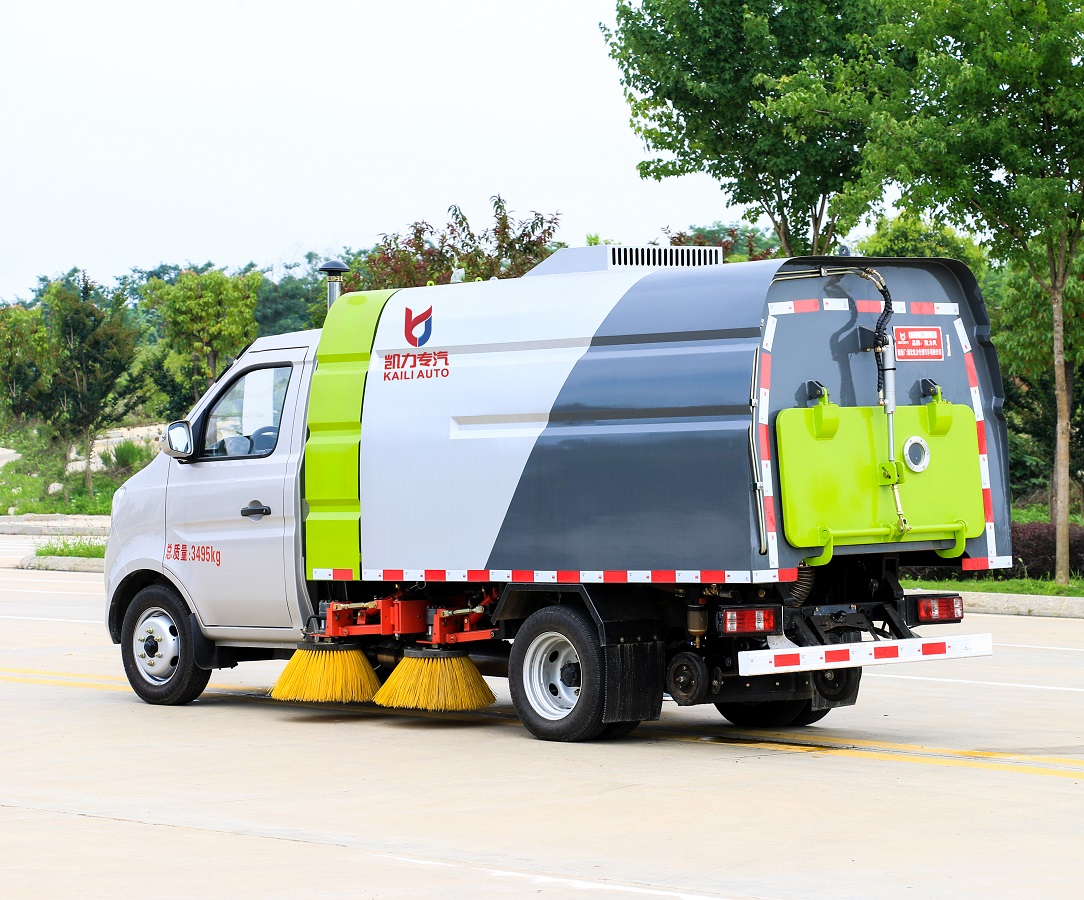

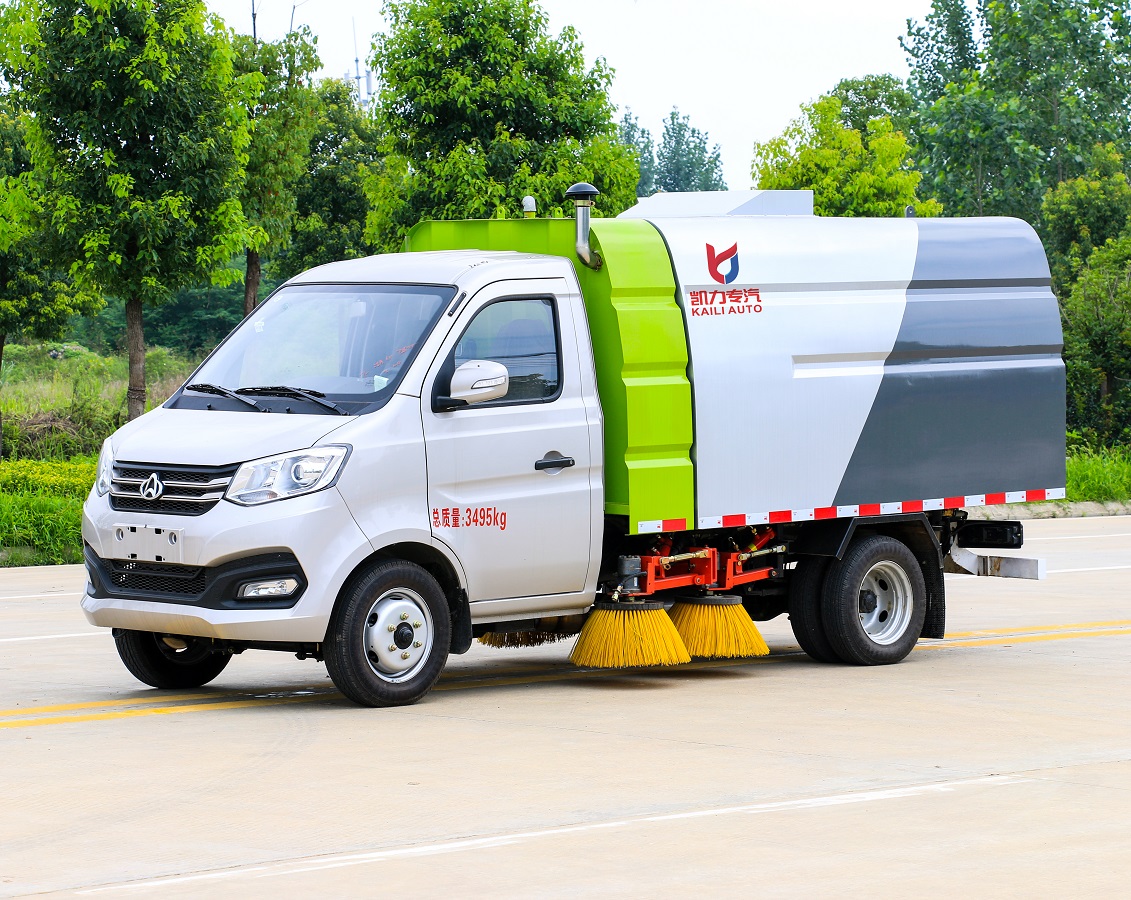

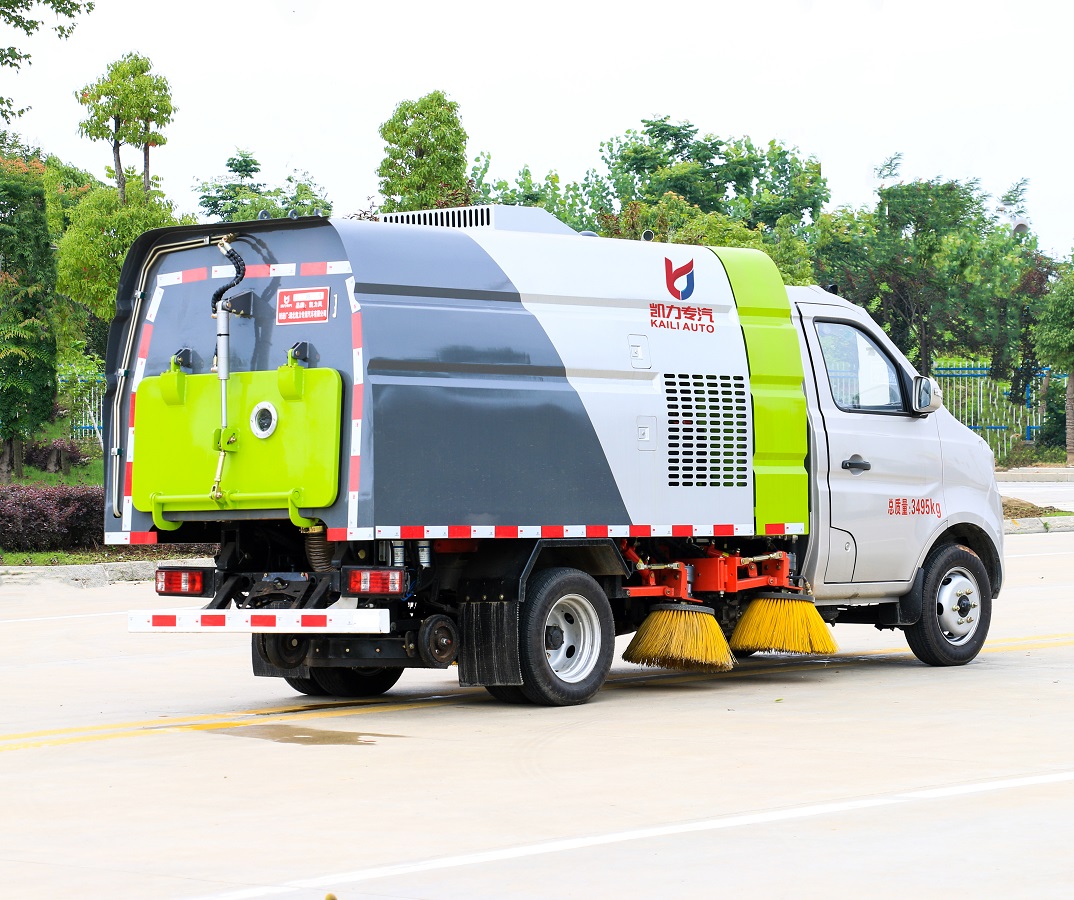

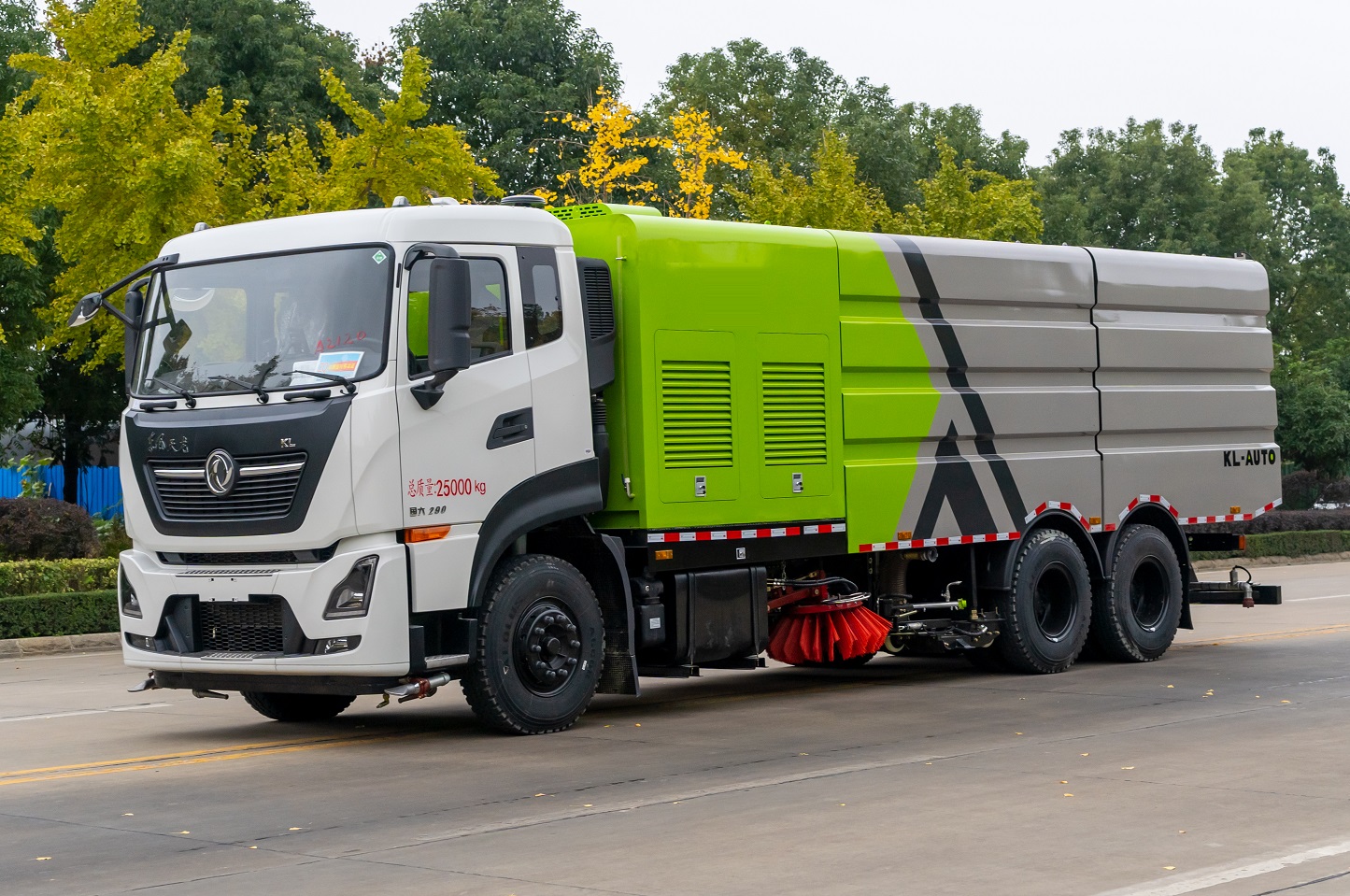

Brand New Vacuum Sweeper Road Cleaner Cleaning Vehicle Sweeping Vehicle for Factory Road Sweep Municipal Sanitation Community Road Asphalt Road

Sweeper Truck Configuration

Special - purpose Parameters

1. Scan the disk
Equipped with anti-collision and shock absorption functions, it can clean the road surface and wash the standing stone surface of the curb.
2. Diaphragm pump
By using a thin film to separate the transported liquid from the active column and pump cylinder, the active column and pump cylinder are protected. It has the advantages of high pressure, high efficiency, and low vibration.
3. Water filter cup
Prevent dirt and impurities from entering the cleaning system. The water filter has a compact and reasonable structural design, small footprint, flexible and convenient installation and movement, high filtration accuracy, and stable effluent quality.
4. Suction cup
The suction port width of the disc reaches 1200mm, ensuring that the total cleaning width is greater than 2.8m. Three height adjustable suction nozzle wheels can be easily adjusted and ensure a reasonable gap between the suction nozzle and the road surface, thereby achieving better suction effect and higher suction efficiency.
5. Safety strut
A support device located under the box to prevent it from falling on its own after lifting.

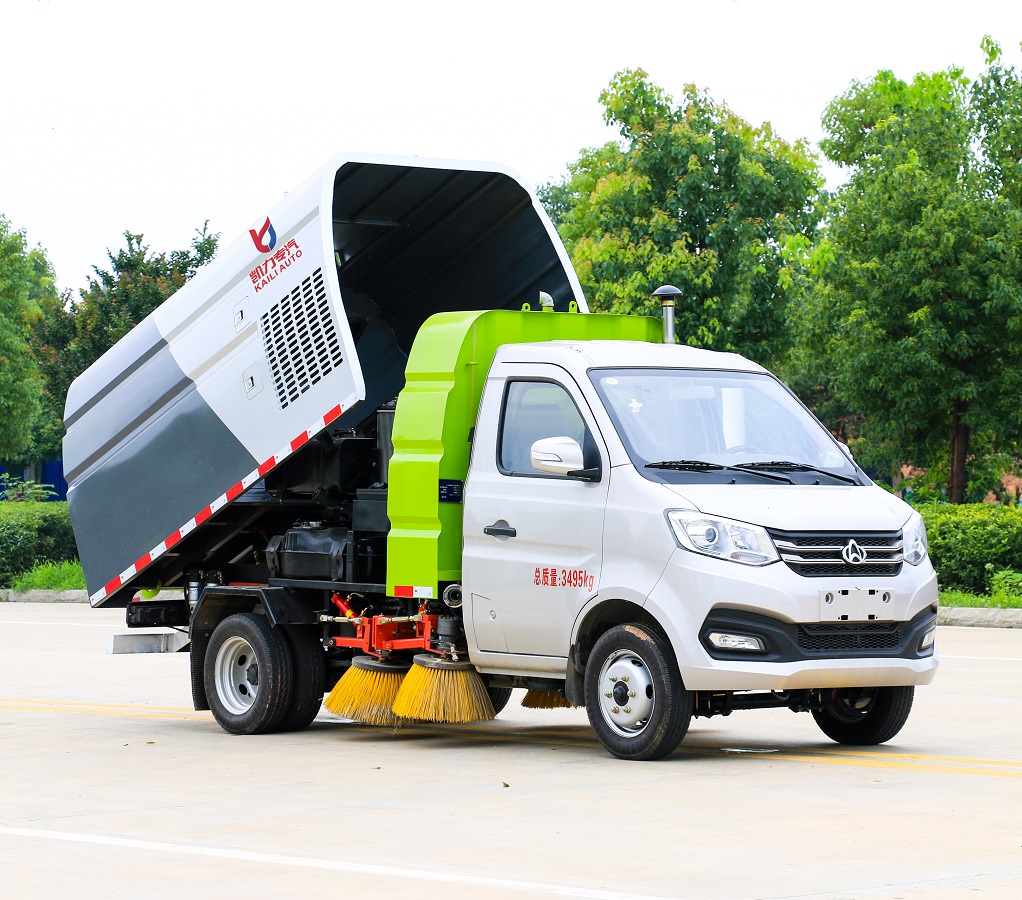

6. Lifting cylinder
Lifting tank for garbage unloading operations.
7. Fan
Maintenance free centrifugal fan, high-power wear-resistant maintenance free centrifugal fan, low noise, high efficiency, large air volume, long service life.
8. Engine
To provide power for the fan and hydraulic system, install air and oil filters to effectively prevent engine dust from entering and causing cylinder pulling.
9. Hydraulic oil tank
A container used to store the oil required to ensure the operation of a hydraulic system.
10. High pressure filter
Used to filter out mechanical impurities mixed in hydraulic oil and the gum, asphalt, carbon residue, etc. produced by the chemical changes of hydraulic oil itself, thereby preventing the occurrence of valve core jamming, blockage of throttling small hole gaps and damping holes, and rapid wear of hydraulic components.
11. Measuring tube
A common overflow prevention device for low water level alarm, where operators can observe the water level inside the tank through a measuring tube at any time. Once the warning line is reached, the operation will automatically stop.
12. Centralized control box
Operating tasks in the cab. One click operating system. Easy to operate, safe and reliable.

Product Description

Isuzu Dongfeng Clean Car Sweeper Truck Mounted Street Dust and Stones Cleaning Road Cleaning Street Flusher Trucks with 4 Brushes

	Auxiliary engine Provide power for fans and high-pressure water pumps, install air filters and engine oil The filter element effectively prevents dust from entering the secondary engine, which can cause cylinder pulling.
Fan transmission system Adopting a brand high-power wear-resistant maintenance free centrifugal fan with strong suction power,Low noise, anti vibration, high power, long service life.
	hydraulic oil tank A container used to store the oil required to ensure the operation of a hydraulic system.
cleaning device The two center mounted sweeping discs have anti-collision and shock-absorbing functions, which can clean the road surface and scrub The curb has a stone surface.
	hydraulic system Complete the hydraulic actions of each scanning disc and box.
electronic control system PLC cab operation, one click operation system, easy to operate,Safe and reliable.
	Suction nozzle device Sweep the garbage, sewage, and stones that cannot be swept up by the brush Absorb, super strong dust collection, improve overall cleanliness rate.
Sewage tank strut sensor Check whether the support rod is lifted and retracted, and ensure the safety of the box's return action Protect.
	Clear water level sensor Detect the minimum liquid level of the clean water tank and provide a water shortage signal for the tank.
Anti overflow alarm Used to check if the sewage tank is full.
	Pneumatic control box Complete the pneumatic control actions of each cylinder in the waterway system.
Spray waterway Sweep disk spray and suction cup spray are used for lowering during cleaning operations Dust and dust removal function.
	reel 20 meter automatic return reel, capable of cleaning small wall advertisements and stubborn mud on the ground Stains can also be cleaned on the vehicle body and other equipment and facilities.
Left and right forward charging Adjustable direction, mainly used for road surface watering, cleaning, and dust reduction The function is to flush road stones and garbage onto the curb for easy cleaning.
	Corner spray Strong pressure, large flow, can clean road markings and curbs, efficient
Convenient. Rear spray waterway It can carry out spray on the road surface to effectively suppress dust.
	clean water tank Electrophoretic process rust prevention treatment, corrosion resistance, acid and alkali resistance, good paint adhesion Long service life, equipped with low water level alarm and overflow prevention device.
dustbin The garbage bin is made of stainless steel material, with a rectangular corrugated structure and a shape Beautiful and structurally reliable.
	Sewage tank visual sewage pipe opening Observe the position of dirt inside the box through the window, and install a sewage alarm device inside,once the warning line is reached, the operation will automatically stop.
Water inlet Connect the water hose with KD65 standard connector to the fire hydrant interface and open the ball Valve, inject water into the water tank through this interface.
	Tail control system To prevent misoperation caused by visual obstruction, a control operation box is installed at the rear of the vehicle, which can operate functions such as rear door switch, dust box lifting, high-pressure water gun, and large box self-cleaning.
Lighting device Night work can be done by turning on the lighting device and observing the sweeping disc, suction cup, etc homework reality.
	Water level gauge Water injection and spraying operations can observe the water level through a water level gauge.

Product Parameters

Company Profile

Our Advantages

cleaning and sweeping vehicle is an efficient sanitation vehicle that integrates the functions of a road sweeping vehicle and a high-pressure cleaning vehicle. The vehicle adopts Dongfeng Tianjin second-class chassis and is equipped with a secondary engine and its transmission device, garbage bin, clean water tank, cleaning device, dust reduction system, suction nozzle, low-pressure flushing system, high-pressure cleaning system, hydraulic system, pneumatic system, electrical system and other components.
Hot New Or Used Large Dongfeng Street Sweeper Heavy-duty Diesel 18000KG Road Cleaning and Sweeping Vehicle 8CBM Washing Sweep and Suck Truck 5180

This car has diverse functions, beautiful and elegant appearance, and superior performance that is efficient, environmentally friendly, and reliable.

After Sales Service

Answer and solve your questions and consult within 24 hours
Overseas job site service available
One year guarantee about three key parts(axle, engine, transmission).Other spare parts could be supplied by cost price.
Other services:
1.All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.

precautions

matters needing attention:
1. For the running in mileage of the car chassis, please refer to the accompanying car chassis user manual for running in and maintenance after running in, such as cleaning the air filter element and replacing the engine oil. running-in
During this period, pay attention to checking for any abnormal vibration, noise, and water leakage in each part, whether the fan drive belt and hydraulic pump drive belt are slipping, and whether the electronic control switches and instrument indicators are normal.
2. Before using the vehicle, it is necessary to check for any oil, water, or gas leaks in the entire vehicle, and if necessary, eliminate them. Check the oil level of the main and auxiliary engines, the water level of the radiator, and if necessary, add oil and water. Check the water system
Are the structural components such as scanning disks and suction cups functioning properly.
3. In winter, before stopping the vehicle, follow the product manual to carry out waterproof and antifreeze operations, and drain the remaining water in the water circuit, water pump, water valve, nozzle and other components.
4. When the engine is running, maintenance or repair of the chassis auxiliary engine, water pump, and hydraulic system is not allowed.
5. When cleaning the vehicle, do not use high-pressure water to directly flush the top of the hydraulic oil tank, auxiliary engine, radiator, solenoid valve, coil, and terminal parts.
To ensure the safety of operators and equipment, the safety pole under the garbage bin must be opened during debugging, installation, testing, and maintenance operations. And secure the safety pole with a safety pin to ensure that personnel and equipment are in contact
Be prepared for safety. Before resetting the trash can after homework, the safety pole should be lowered first.

PRODUCT SHIPPING (RORO OR BULK SHIP OR CONTAINER)

RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.

BULK:  The truck is lifted by crane then put on the vessel deck. This model is much cheaper.

CONTAINER: The truck is put into the container. This model is used for small model trucks.
